Description: This fully automatic and extremely easy-to-use rotating laser including aluminium lightweight tripod and SensoMaster M350 high-performance laser receiver is ideal for precise alignment work in the horizontal plane. Thanks to the 5/8” thread integrated into the side of the casing for mouting to tripods, the laser can be positioned so that it can also be used for precise vertical alignment. The plumb points projected at the top and bottom act as a reliable reference to ensure the horizontal plane and the plumb of a foundation. All functions can easily be controlled with the remote control up to a maximum distance of 40 metres. The HighCapacityPack with lithium-ion technology can be used and charged at the same time which means users can work without interruption.

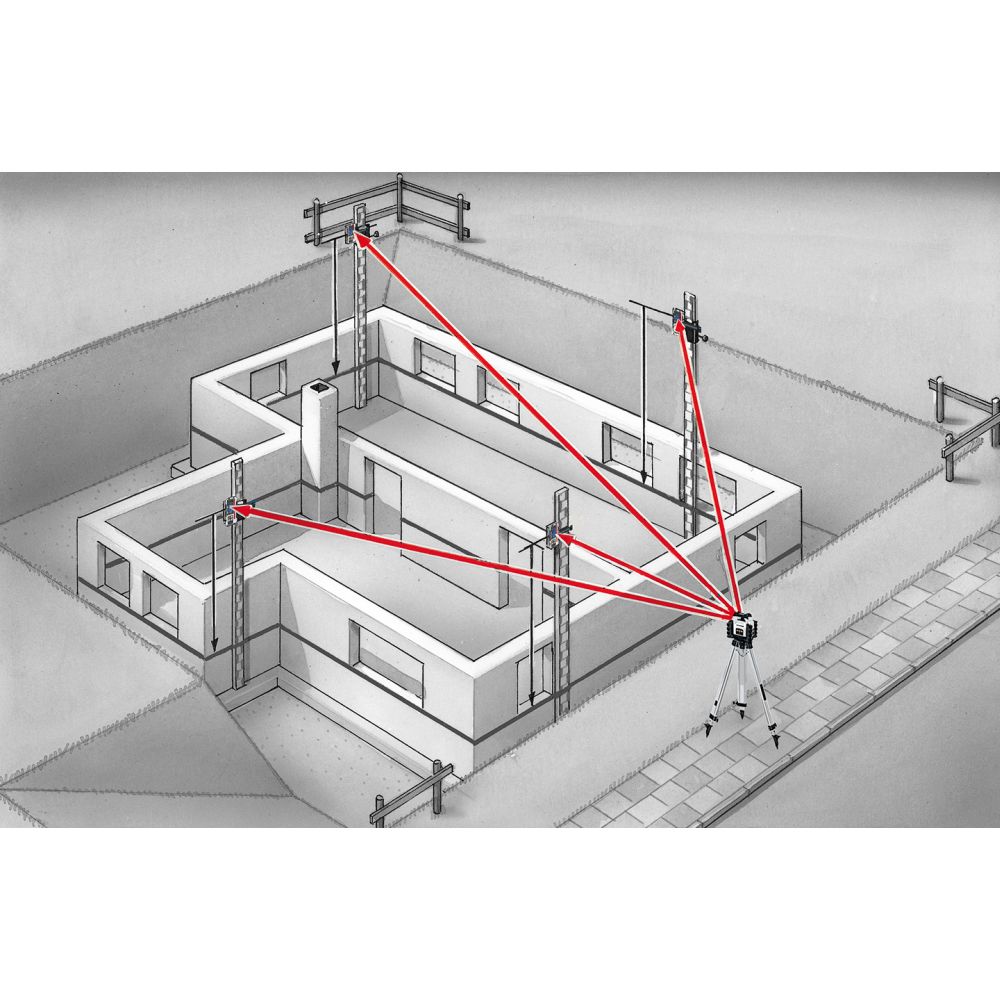

Precise alignment of horizontals

Light and robust stand for a secure footing

Easy alignment of slopes up to 4° with motorised tilt function and over 4° with manual tilt function and optional angle plate

Also suitable for precise vertical alignment work due to 5/8” thread

Extremely practical, easy to use, one-button operation

Additional plumb laser at top and bottom

Time-saving fully automatic alignment by means of automatic sensor

Long operating life due to two powerful HighCapacityPack with lithium-ion technology

Reliable measurement through automatic power off with ADS tilt

Robust, waterproof housing with optimum grip

Transport LOCK: The device is protected by a special motor brake during transport

Long laser receiver unit for rapid detection of the laser over large distances

Two-sided graphical and numerical display of the height difference to the laser level

Additional display of the height difference with three bright LEDs and loud Piezo buzzer sound

Easy-to-read LC displays on front and back

Easily fixed to measuring staff with universal holder

Horizontal/vertical levelling	✅
Hand receiver mode	✅
Scan mode	✅
Spot mode	✅
Motorised slope function	✅
Manual slope function	✅
Precision sensor levelling	✅
Battery and mains operation	✅
Anti-Drift-System (ADS)	✅
Plumb laser up (90° reference beam)	✅
Plumb laser down	✅
Tilt warning function	✅
AntiShake	✅
Self-Levelling Range	± 4°
Accuracy	± 0.15 mm / m
Levelling	horizontal / vertical automatic
Laser Wavelength	635 nm
Laser Class	2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
Laser Modes	Hand receiver mode Spot mode Rotary mode Scan mode
Protection Class	IP 66
Power Supply	Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Time	approx. 25 hours
Battery Recharging Time	approx. 4 hours
Operating Conditions	-10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
Storage Conditions	-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
Dimensions (W x H x D)	170 mm x 170 mm x 188 mm
Weight	1575 g #

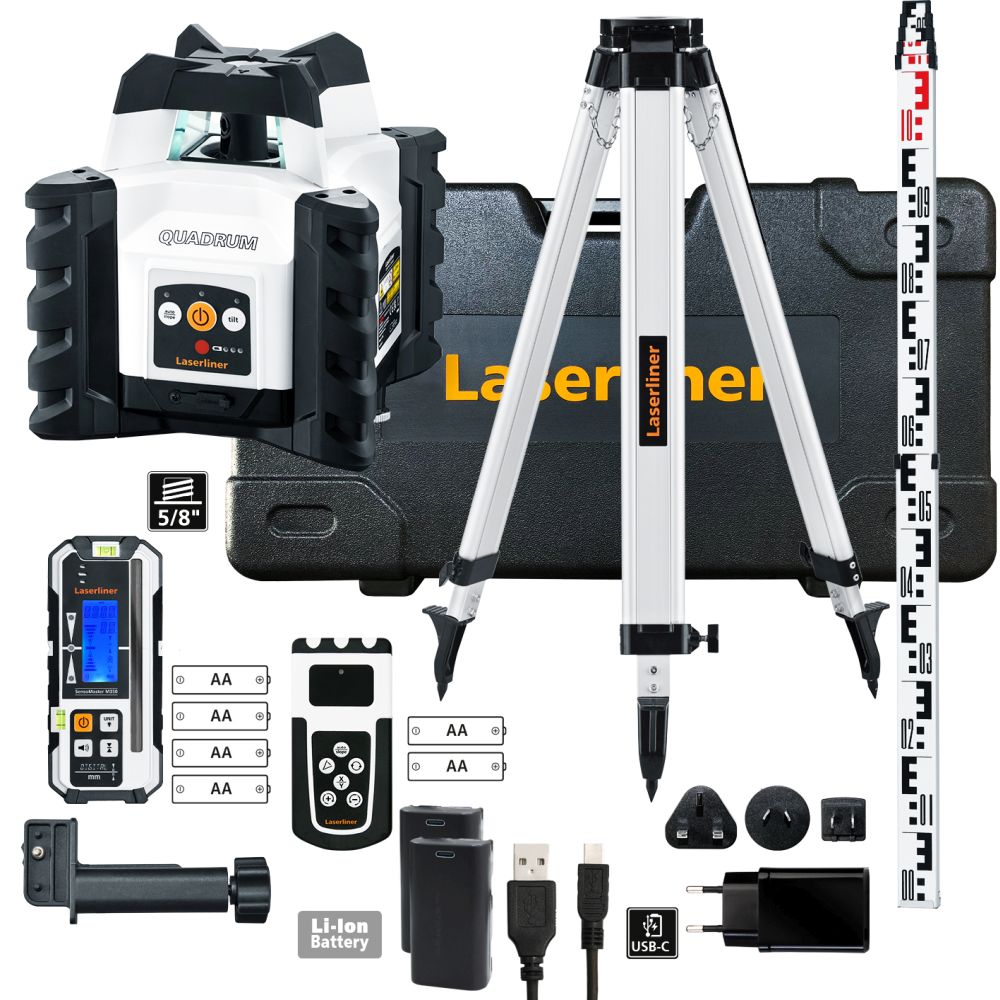

Scope of delivery:

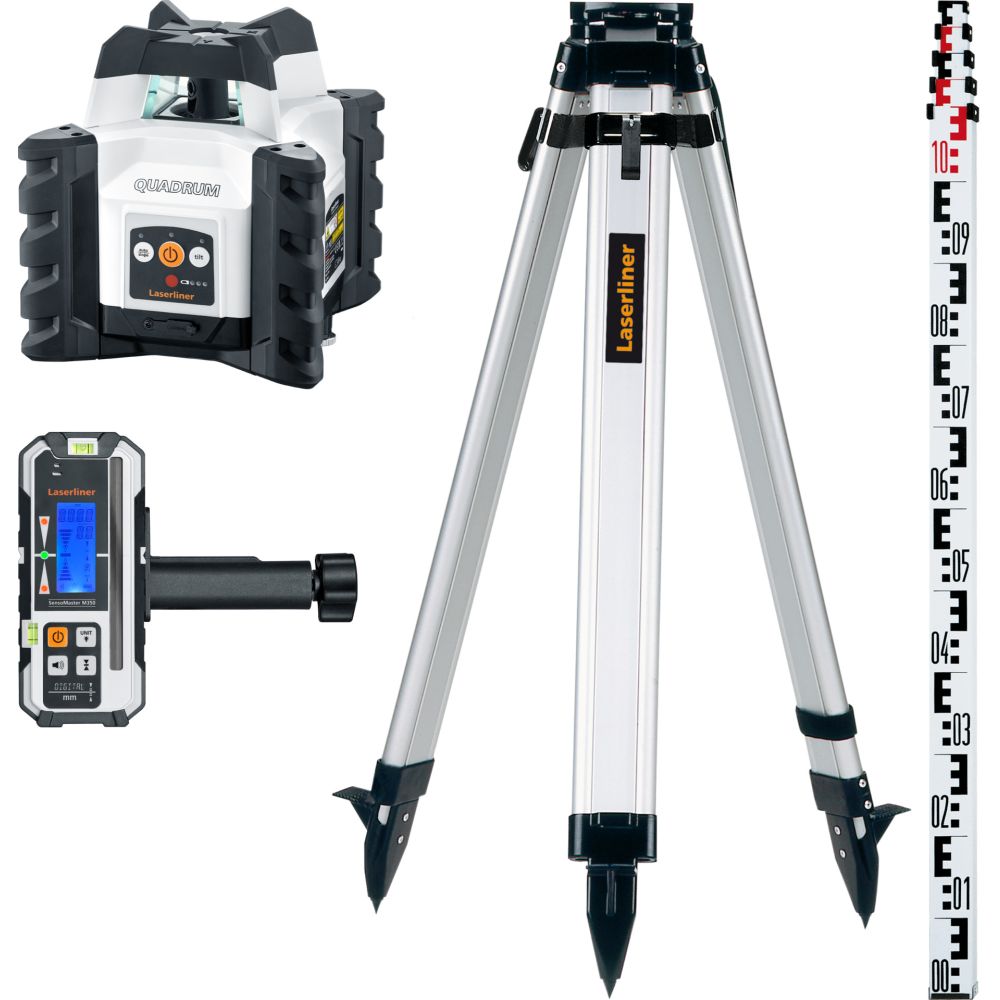

Quadrum Compact

SensoMaster M350

Light-weight tripod 165 cm

universal mount

2 x HighCapacityPack (Li-Ion)

batteries

network/charging device incl. international adapter

USB-A to USB-C cable

carrying case

Accessories (optional):

•
  SensoLite 310 Set
  (Art.No.: 028.71) - Laser receiver


•
  SensoLite 410 Set
  (Art.No.: 028.75) - Laser receiver for rotary lasers


•
  SensoLite 210 Set
  (Art.No.: 028.68A) - Laser receiver for rotary lasers


•
  VarioStand L 300 cm
  (Art.No.: 080.24A) - tripod


•
  Crank Tripod P 175 cm
  (Art.No.: 080.26) - crank tripod


•
  Crank Tripod 260 cm
  (Art.No.: 080.35) - Crank tripod


•
  Crank Tripod 300 cm
  (Art.No.: 080.39) - Crank tripod


•
  Flexi Levelling Staff red
  (Art.No.: 080.50) - Levelling staff


•
  Angle Bracket 5/8”
  (Art.No.: 080.75) - Angle plate for rotary lasers


•
  Wall Mount Pro
  (Art.No.: 080.71) - Wall bracket


•
  HighCapacityPack m. USB-C Kabel
  (Art.No.: 036.51A) - Powerful battery pack


•
  Teleskop-Nivellierlatte 4m
  (Art.No.: 052.205.02) - Levelling Staff

Documentation:

Instructions
Instructions part 2
