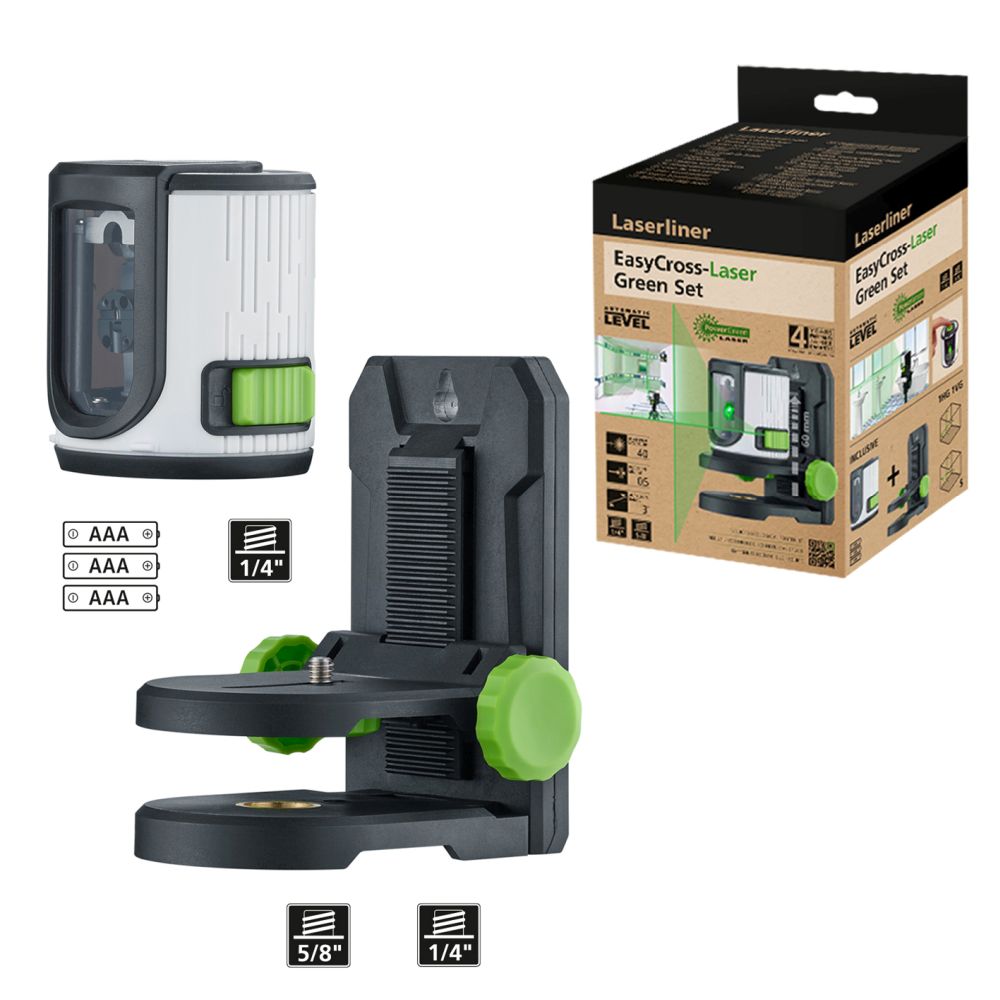

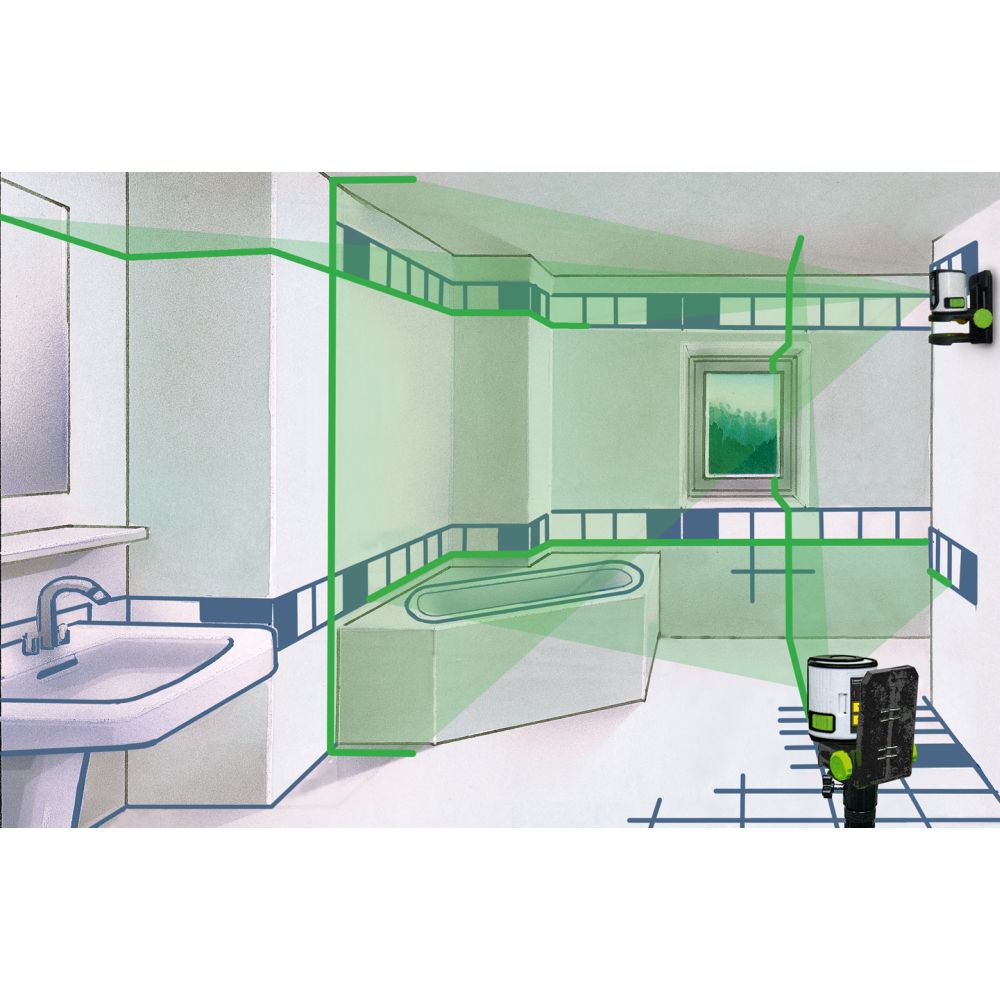

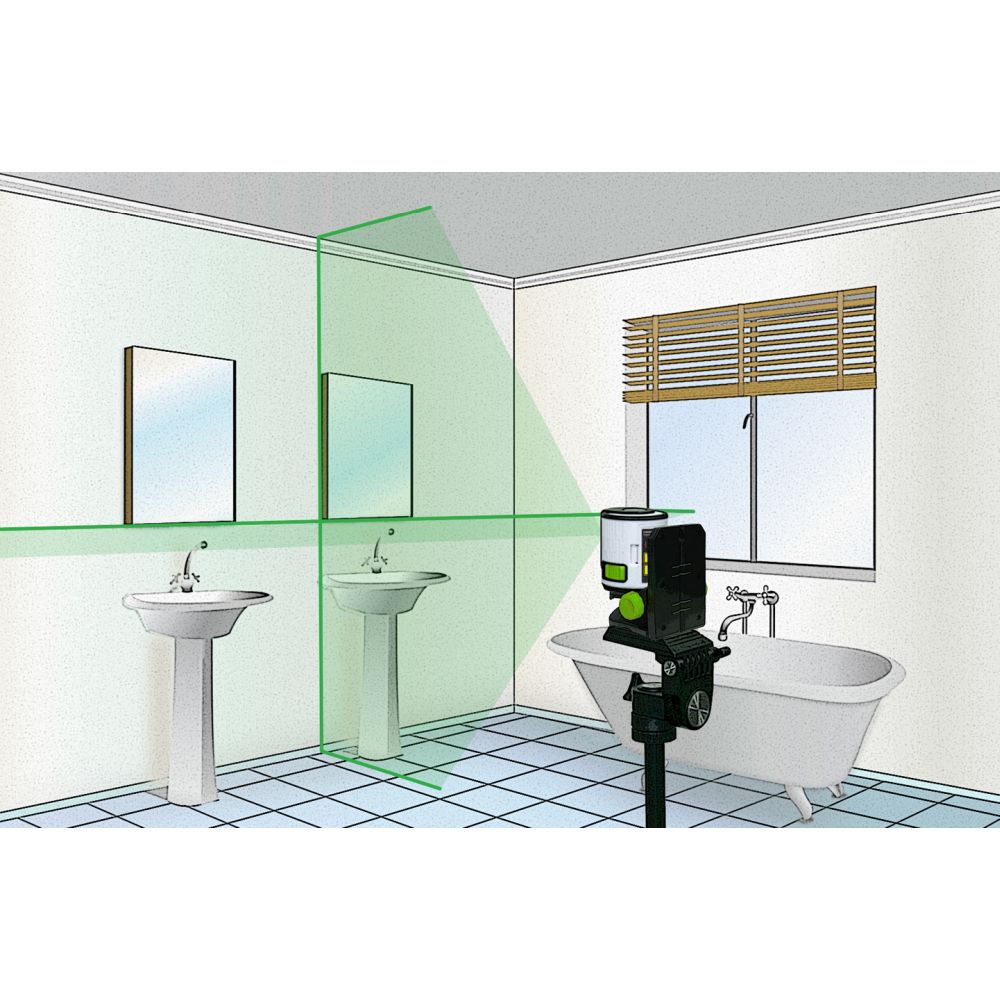

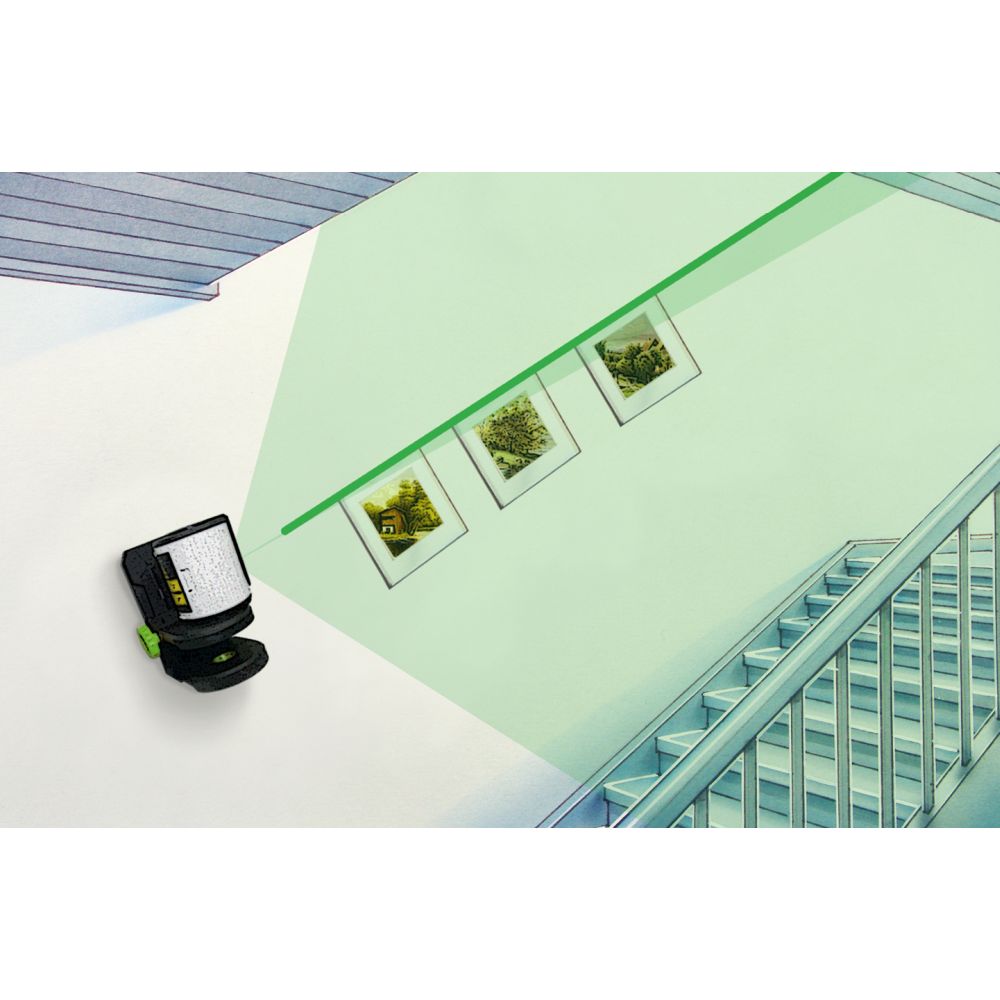

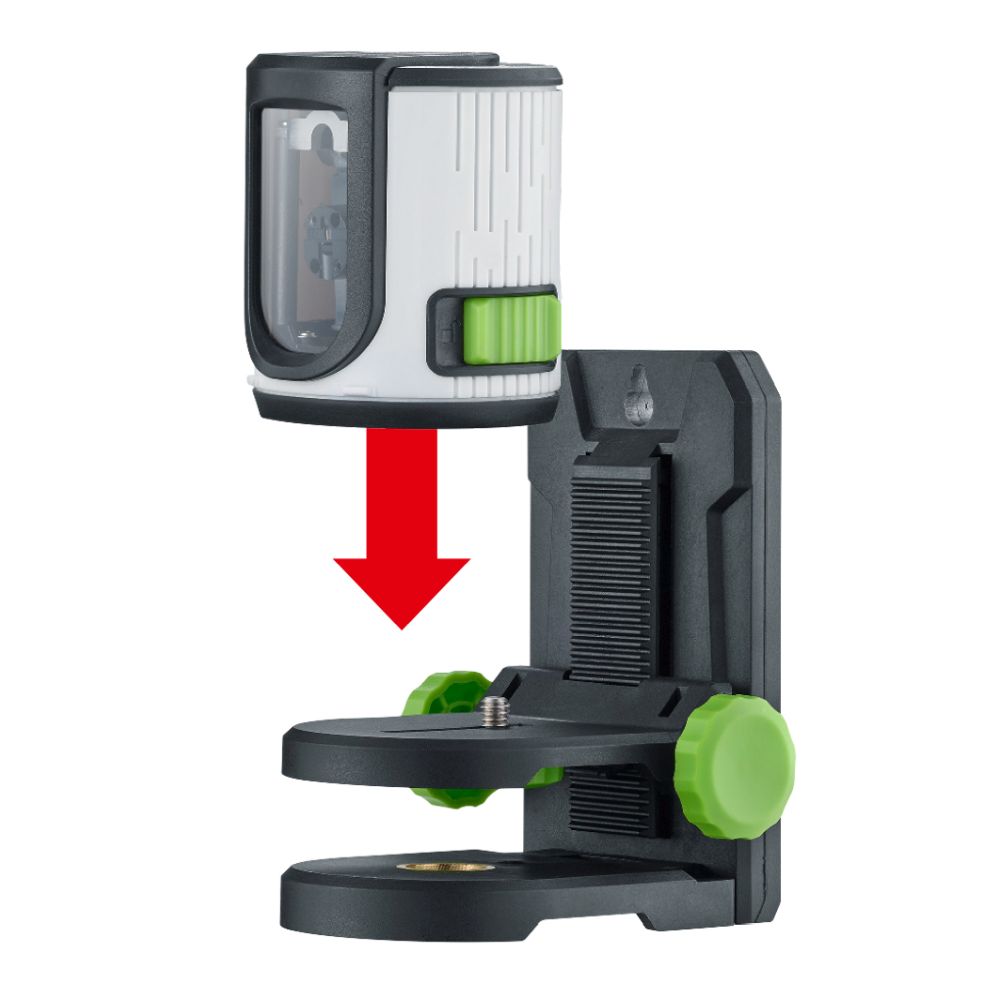

Description: The automatic cross-line laser generates a light green laser cross that is easy to see and is perfectly suited to precise horizontal and vertical alignment work. The multi-functional bracket enables the optimum attachment of the laser to tripods with 1/4" and 5/8” threads, walls and metal constructions. Optical signals warn the user when the unit is outside its self-levelling range. The housing of the laser is made from a large proportion of recycled plastic and makes a valuable contribution to sustainability. A pendulum lock ensures safe transportation.
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Battery operation | ✅ |
| Self-Levelling Range | ± 3° |
| Accuracy | ± 0.5 mm / m |
| Levelling | automatic |
| Visibility (Typical)* | 40 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |

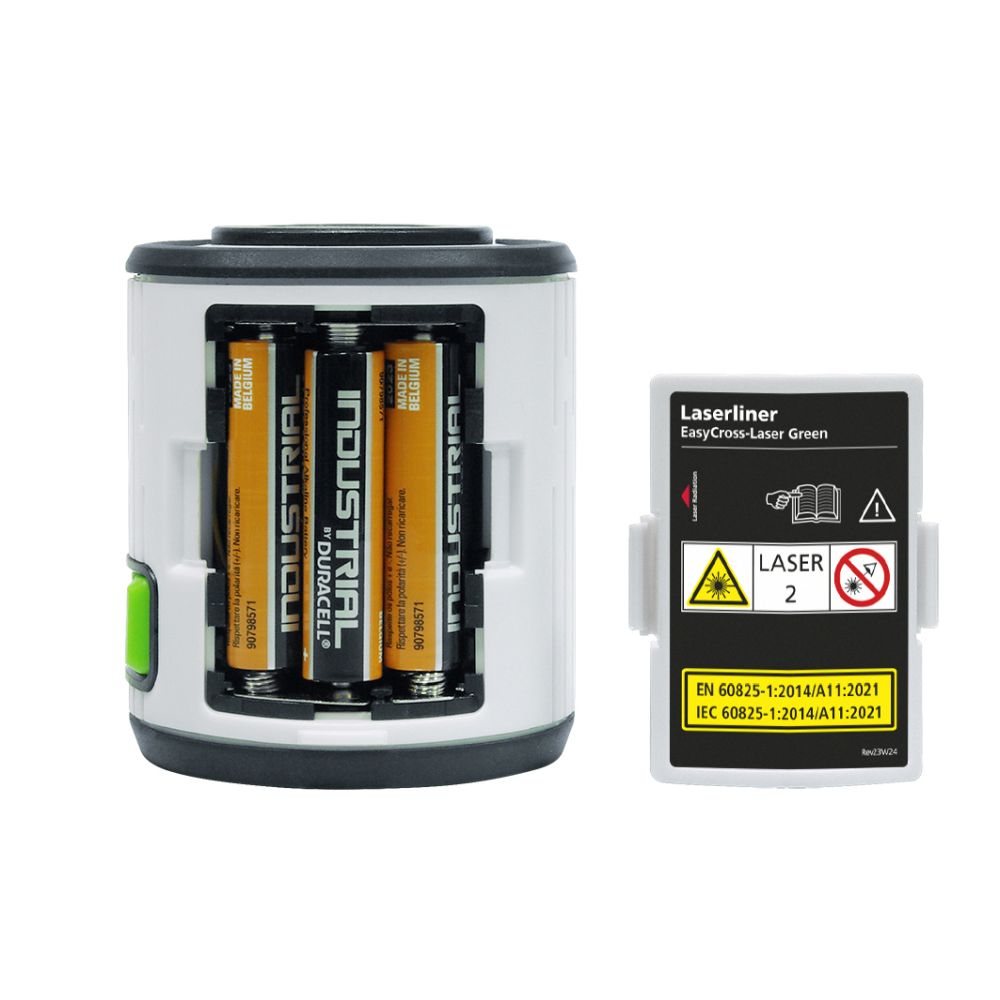

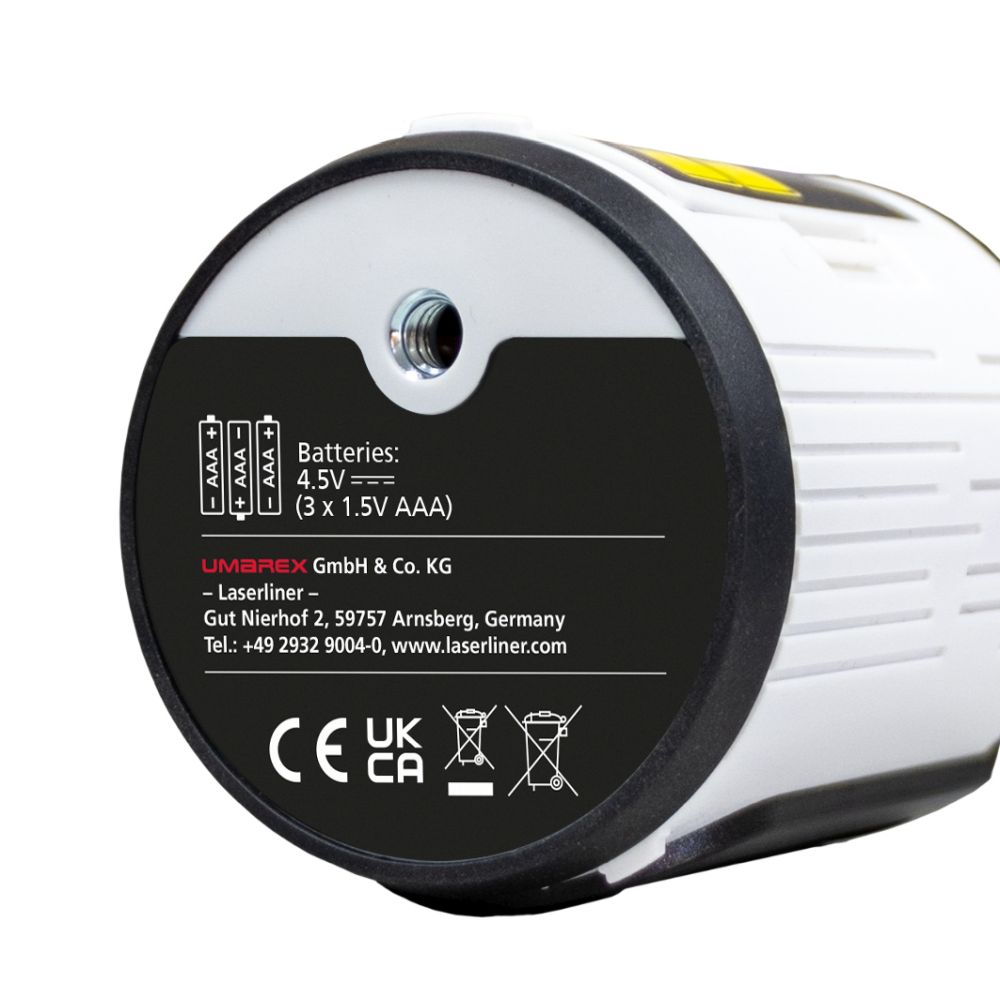

| Power Supply | 3 x 1.5V LR03 (AAA) |
| Operating Time | approx. 5 hours |
| Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
| Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
| Dimensions (W x H x D) | 62 mm x 72 mm x 61 mm |
| Weight | 202 g (inkl. Batterien / ohne Zubehör) |
Scope of delivery:
Accessories (optional):
TelePod 270 cm(Art.No.: 090.140A) - Telescopic tripod
VarioStand 45 cm(Art.No.: 080.22E) - Compact tripod
VarioStand L 180 cm(Art.No.: 080.27E) - Tripod
FlexClamp(Art.No.: 090.133E) - clamping bracket
TelePod Plus 330 cm(Art.No.: 090.122E) - Telescopic tripod
VarioStand L 120 cm(Art.No.: 080.29E) - Tripod
FixPod 155 cm(Art.No.: 090.132E) - camera tripod
VarioStand L 200 cm(Art.No.: 080.23E) - Tripod
VarioStand L 200 cm(Art.No.: 080.23) - Tripod
Documentation:
Titel:
Cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
EcoLine
Art.No.: 081.081E, GTIN (EAN): 4021563730391
