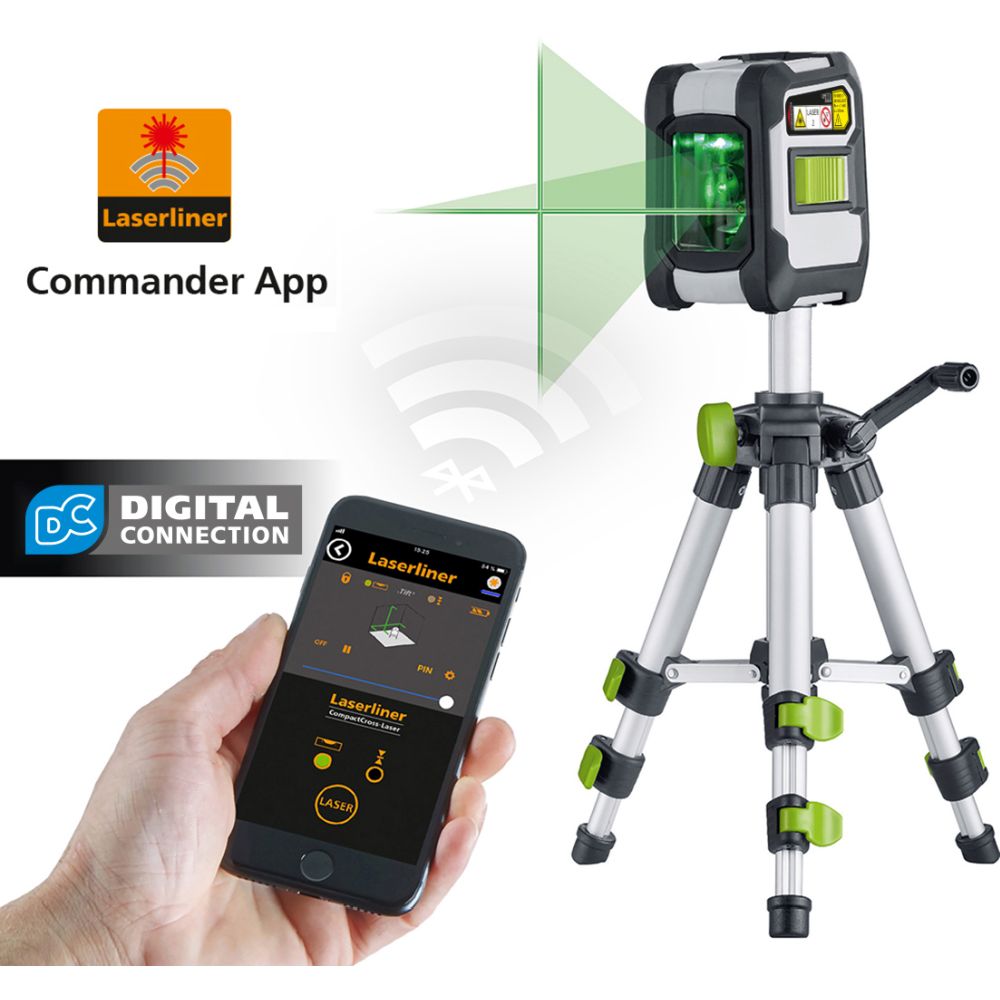

Description: The CompactCross-Laser Pro is suitable for the accurate alignment of horizontals, verticals and slopes. The green laser cross offers optimum visibility. The measuring device can easily be remotely controlled with a smartphone using the Commander app. The handy crank tripod is ideal for applications close to the ground.
| Horizontal/vertical levelling | ✅ |
| Manual slope function | ✅ |
| Battery operation | ✅ |
| Acoustic out-of-level warning | ✅ |
| Self-Levelling Range | ± 4° |
| Accuracy | ± 0.35 mm / m |

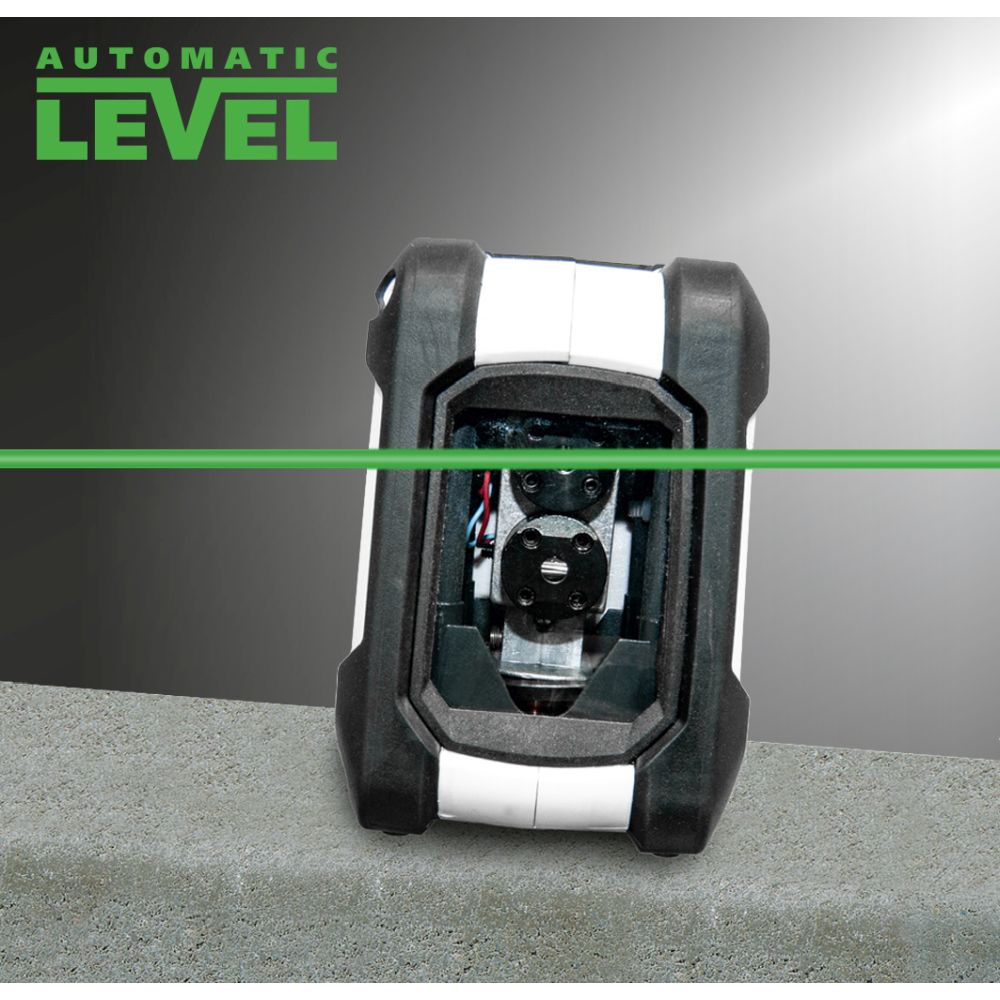

| Levelling | horizontal / vertical automatic |
| Visibility (Typical)* | 40 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Laser Reception Range | max. 40 m |
| Power Supply | 2 x 1.5V LR6 (AA) |
| Operating Time | approx. 3 hours |
| Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
| Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
| Dimensions (W x H x D) | 75 mm x 88 mm x 58 mm |
| Weight | 246 g (inkl. Batterien) |
| * at max. 300 lux |
Scope of delivery:
Accessories (optional):
CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver
VarioStand L 300 cm(Art.No.: 080.24A) - tripod
RangeXtender M 50(Art.No.: 033.70A) - Laser receiver
Documentation:
Product information sheetTitel:
cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 081.143A, GTIN (EAN): 4021563706884
