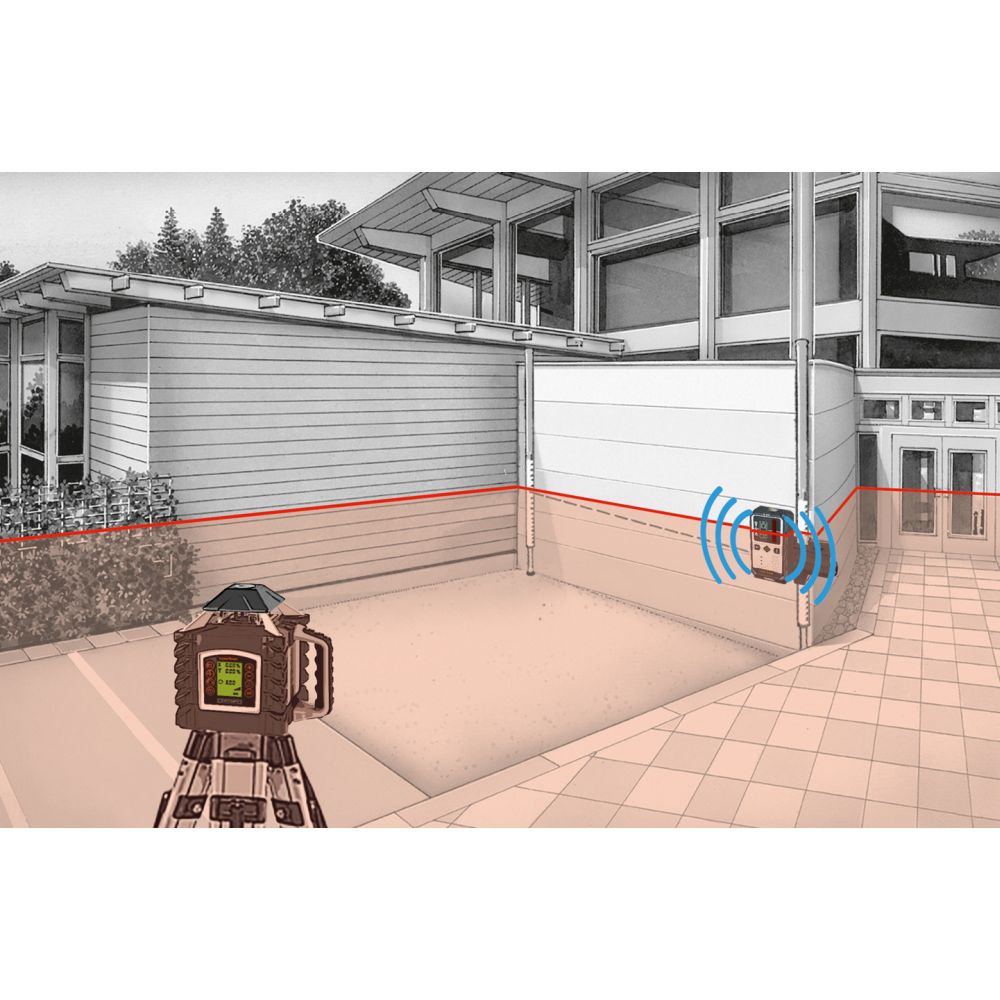

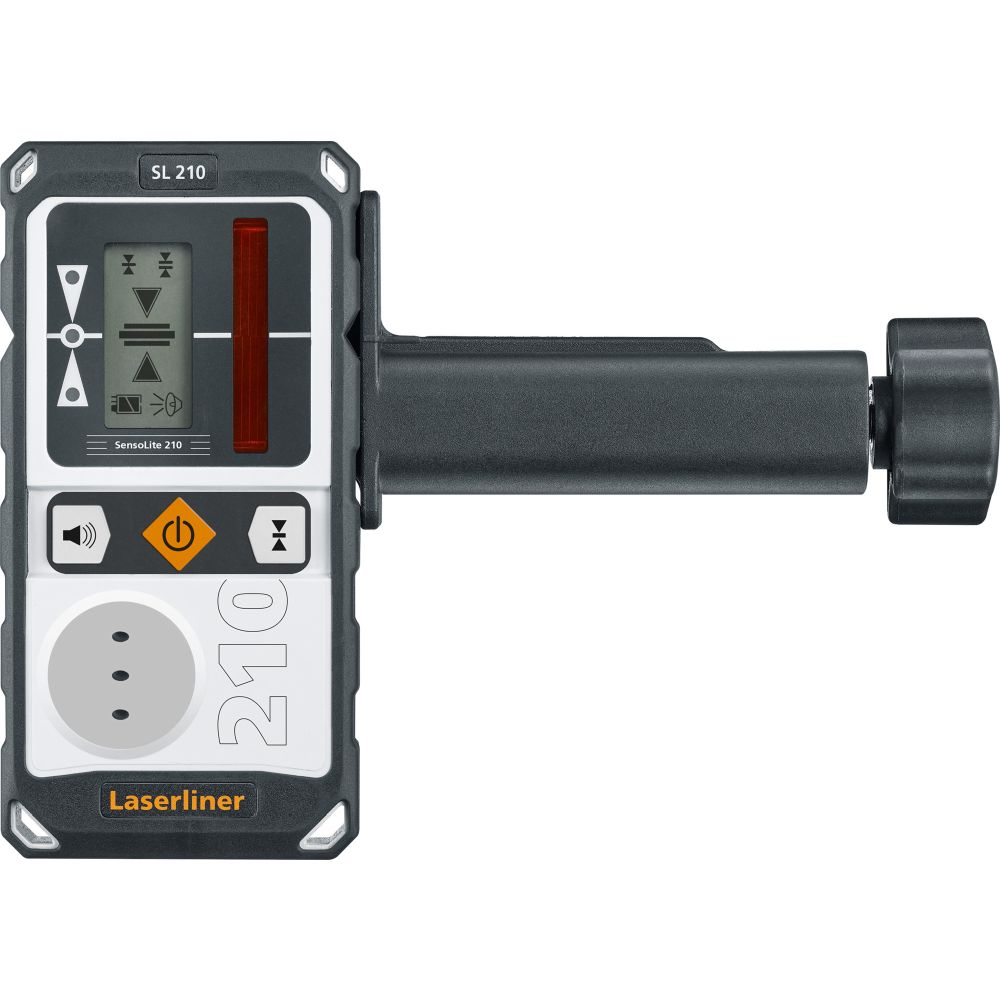

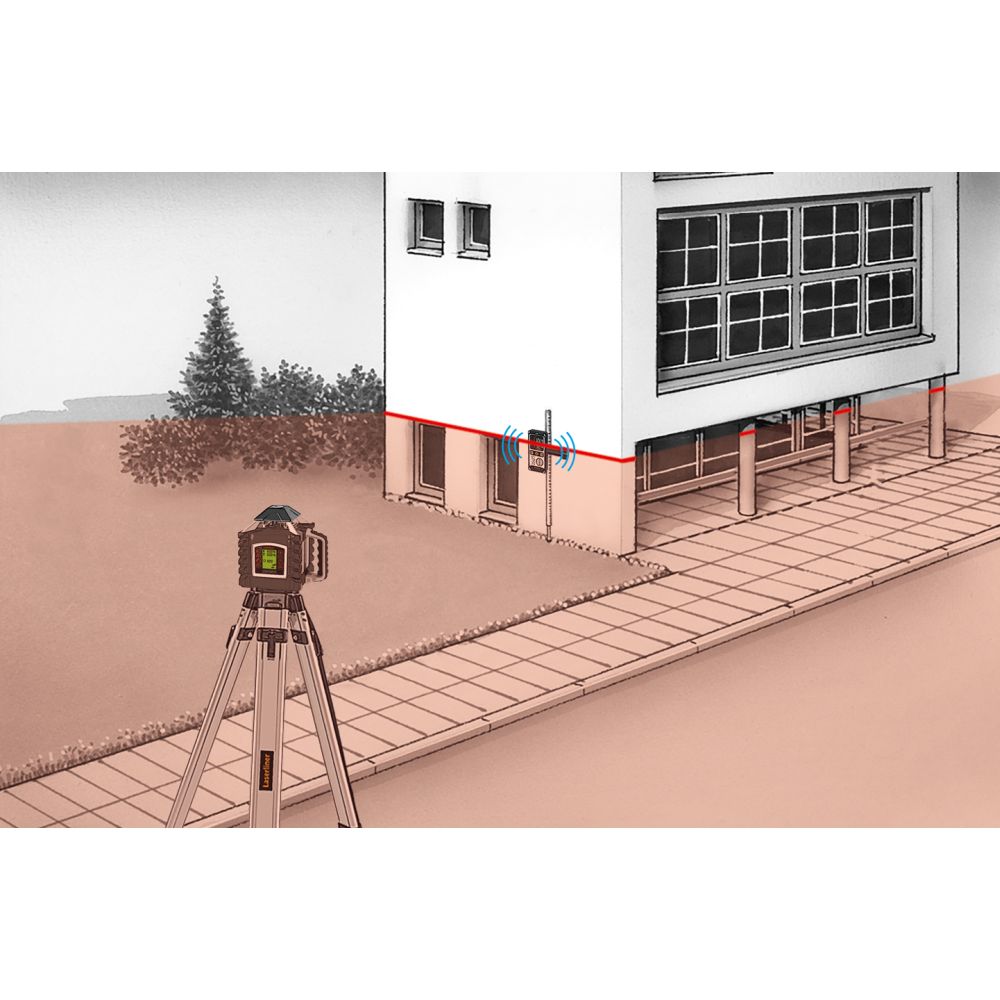

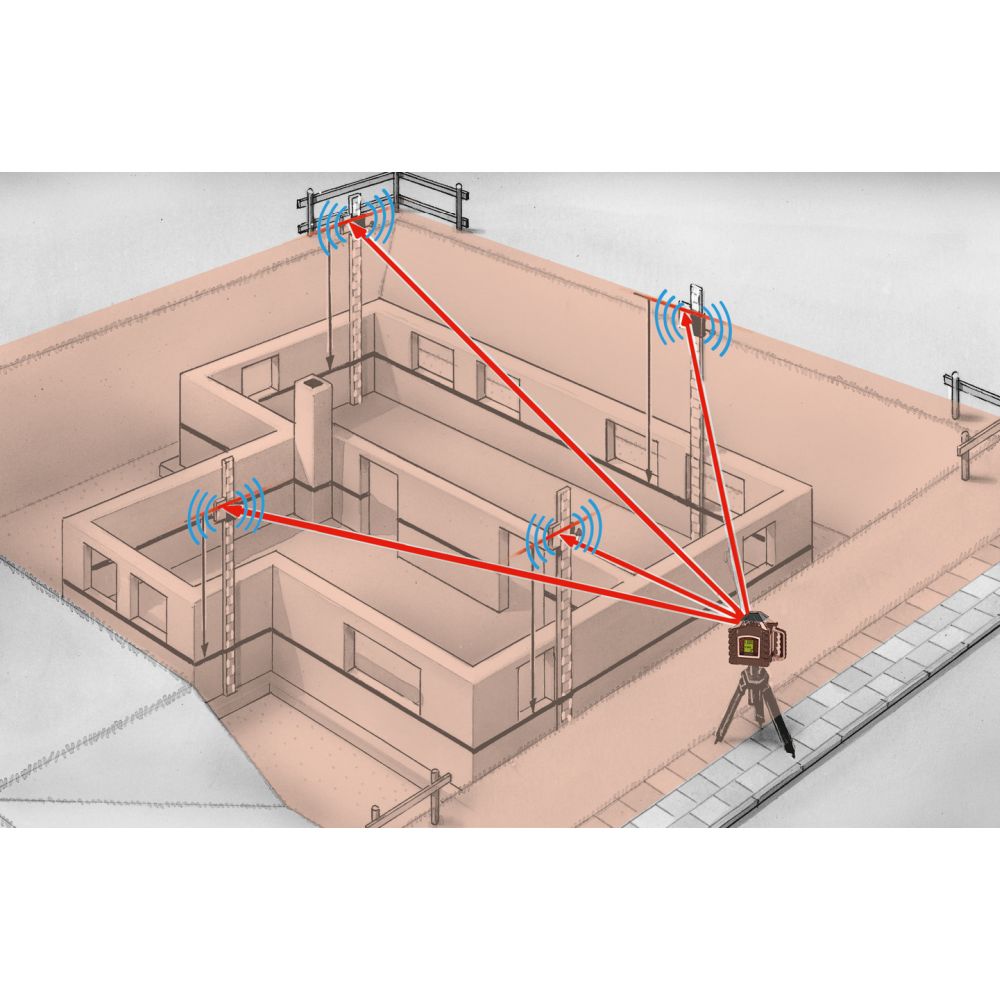

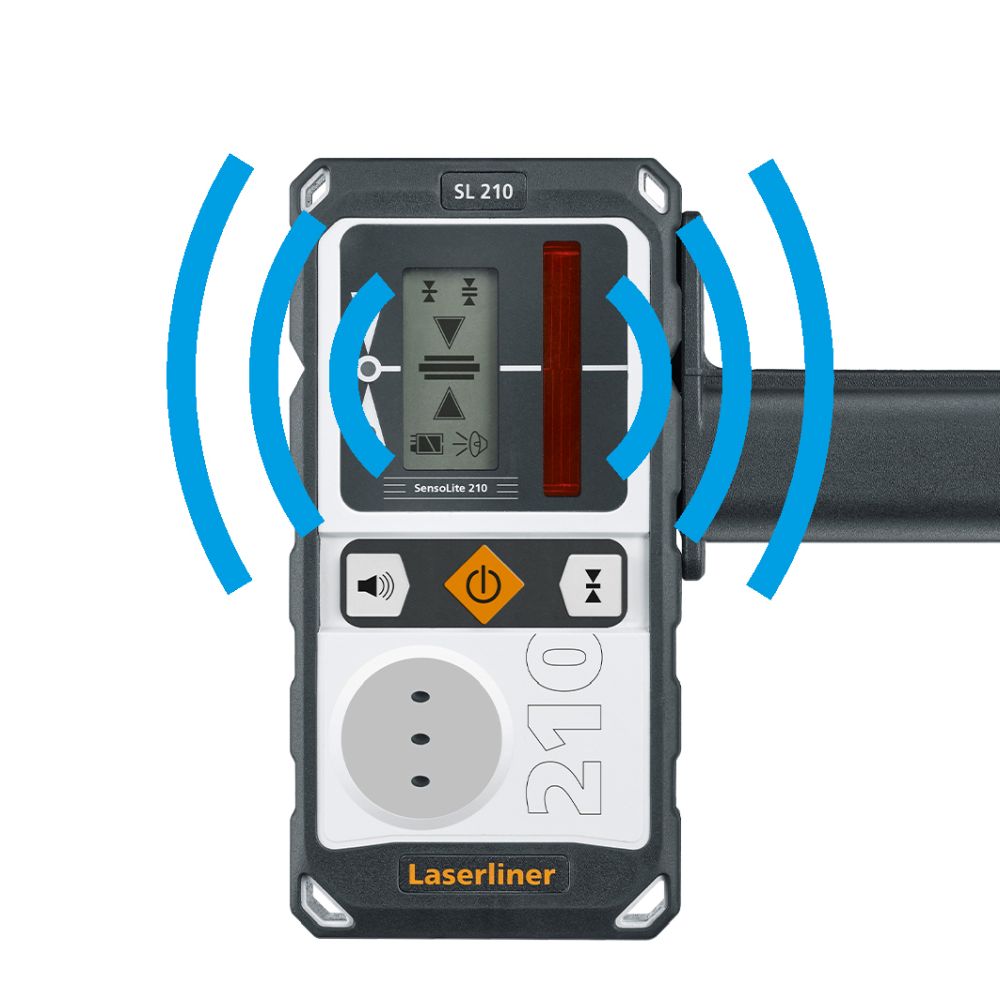

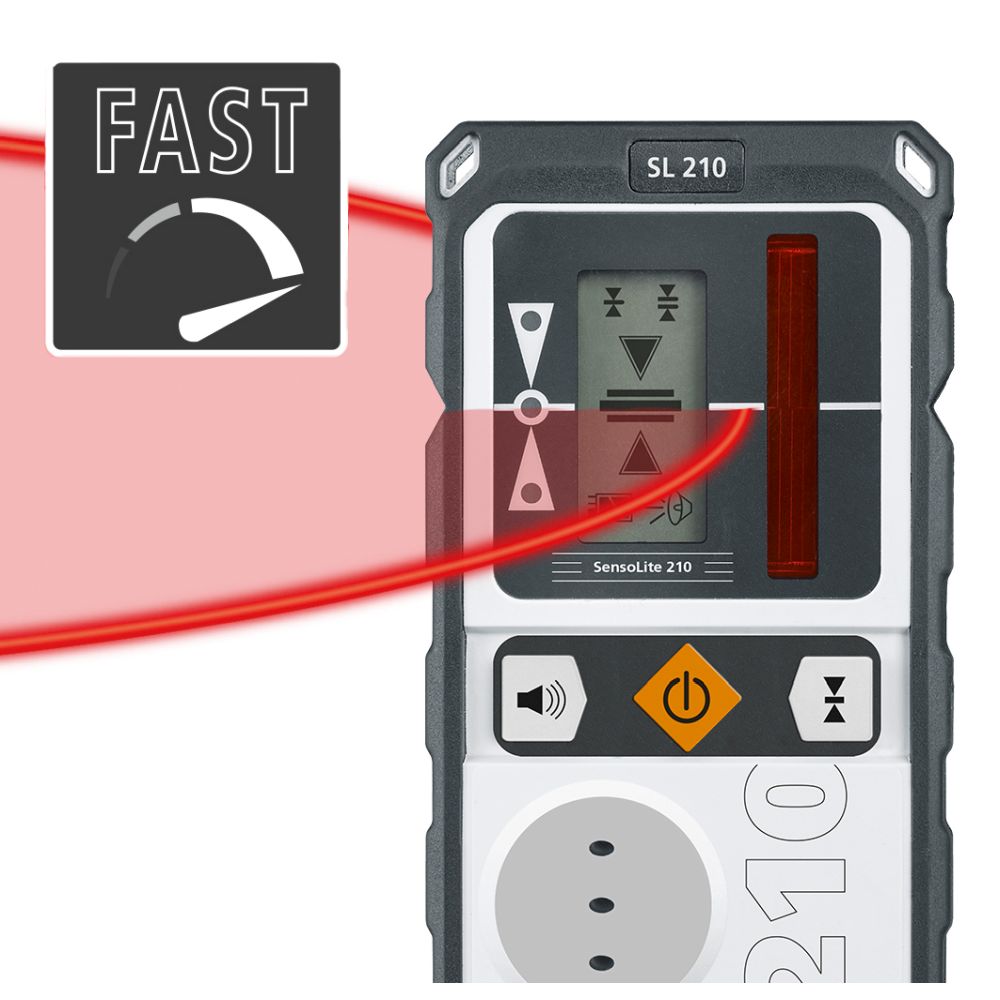

Description: This laser receiver is suitable for red rotary lasers and provides time-saving, close and long-range alignment within a 200 metre range. The easy-to-read LC display on the front and clear acoustic signals provide the user with information on the height of the laser beam. The universal mount allows the device to be easily attached to levelling staffs. The integrated head magnet allows the device to be attached to metal surfaces.
| Necessary Rotation Speed | 0, 100, 400, 800 rpm |

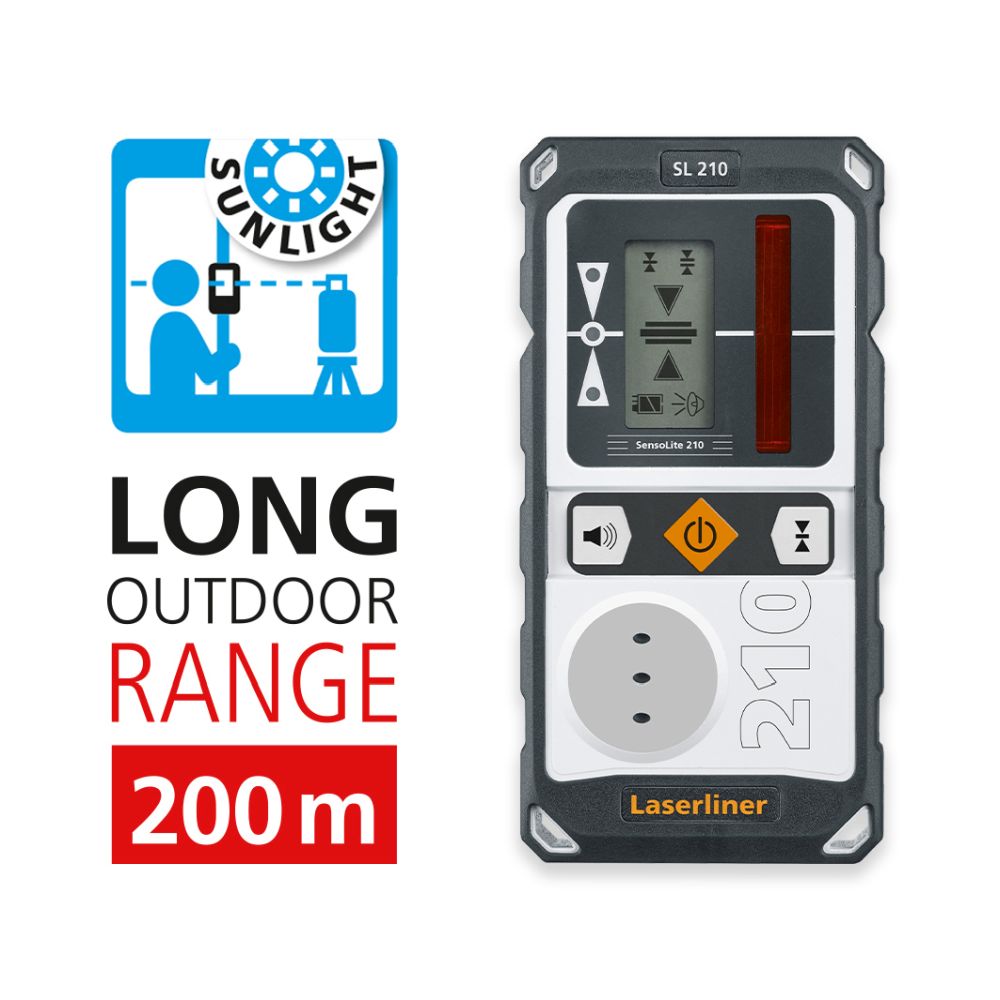

| Laser Reception Range | max. 200 m |
| Length of Receiver Unit | 45 mm |
| Protection Class | IP 66 |
| Power Supply | 4 x 1.5V LR03 (AAA) |
| Operating Time | approx. 80 hours |
| Operating Conditions | -10°C … 40°C, Luftfeuchtigkeit max. 20 … 85% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
| Storage Conditions | -20°C … 70°C, Luftfeuchtigkeit max. 80% rH |
| Dimensions (W x H x D) | 75 mm x 148 mm x 22 mm |
| Weight | 215 g (inkl. Batterien) |
Scope of delivery:
Documentation:
Product information sheetTitel:
Laser receiver for rotary lasers
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 028.68A, GTIN (EAN): 4021563716784
