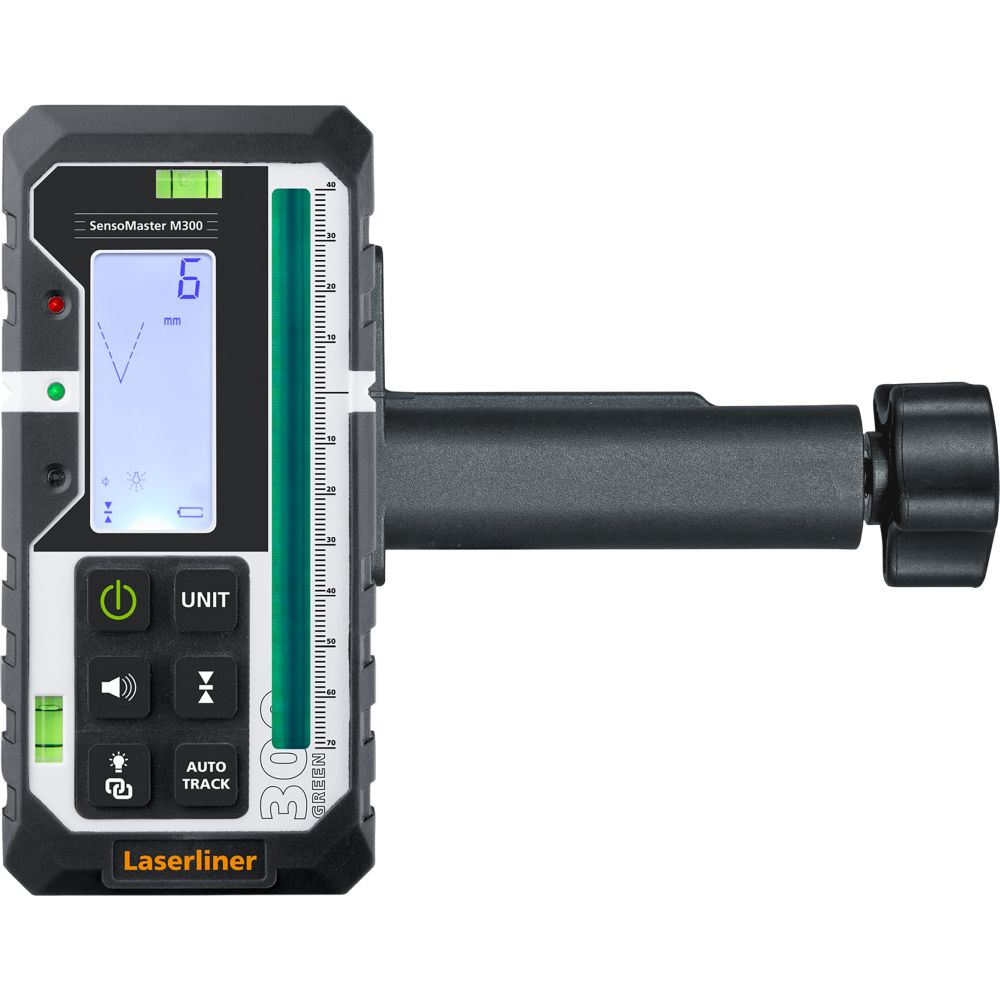

SensoMaster M300 Set

High-performance laser receiver for green rotary lasers with millimetre display, tracking function and large reception range

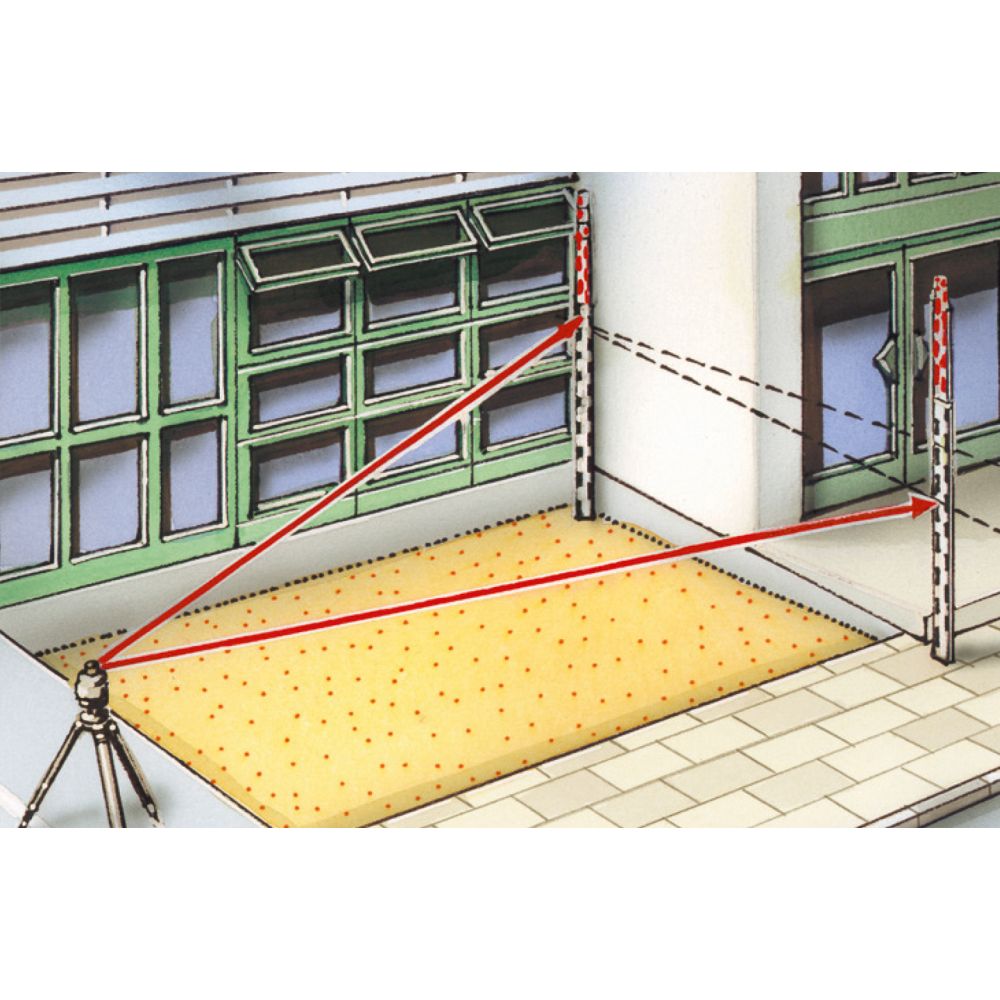

Description: This high-performance laser receiver is suitable for green rotary lasers and allows precise detection of height information over long distances. The tracking function transmits the target position via radio to the Quadrum Compact G rotary laser, which automatically aligns itself with the receiver. This is ideal for precise leveling, for example when aligning terraces. Thanks to the long laser reception range, laser planes are quickly detected, with the millimeter display showing exact differences from the target height. Easy-to-read LC displays on the front and back ensure clear visibility of the measurements. The receiver can be easily mounted on metallic surfaces using the head magnet and can be attached to measuring rods via the universal bracket. Vertical and horizontal spirit levels support precise alignment, while a switchable, extremely loud piezo buzzer provides acoustic feedback. The robust, waterproof housing with protective rubber ensures long-lasting usability even under demanding construction site conditions.

  • Tracking function: The receiver transmits the target position via radio, and the Quadrum Compact G rotary laser automatically aligns itself to it. Ideal for precise levelling, e.g. installing room dividers or aligning a terrace
  • Long laser receiver unit for rapid detection of the laser over large distances

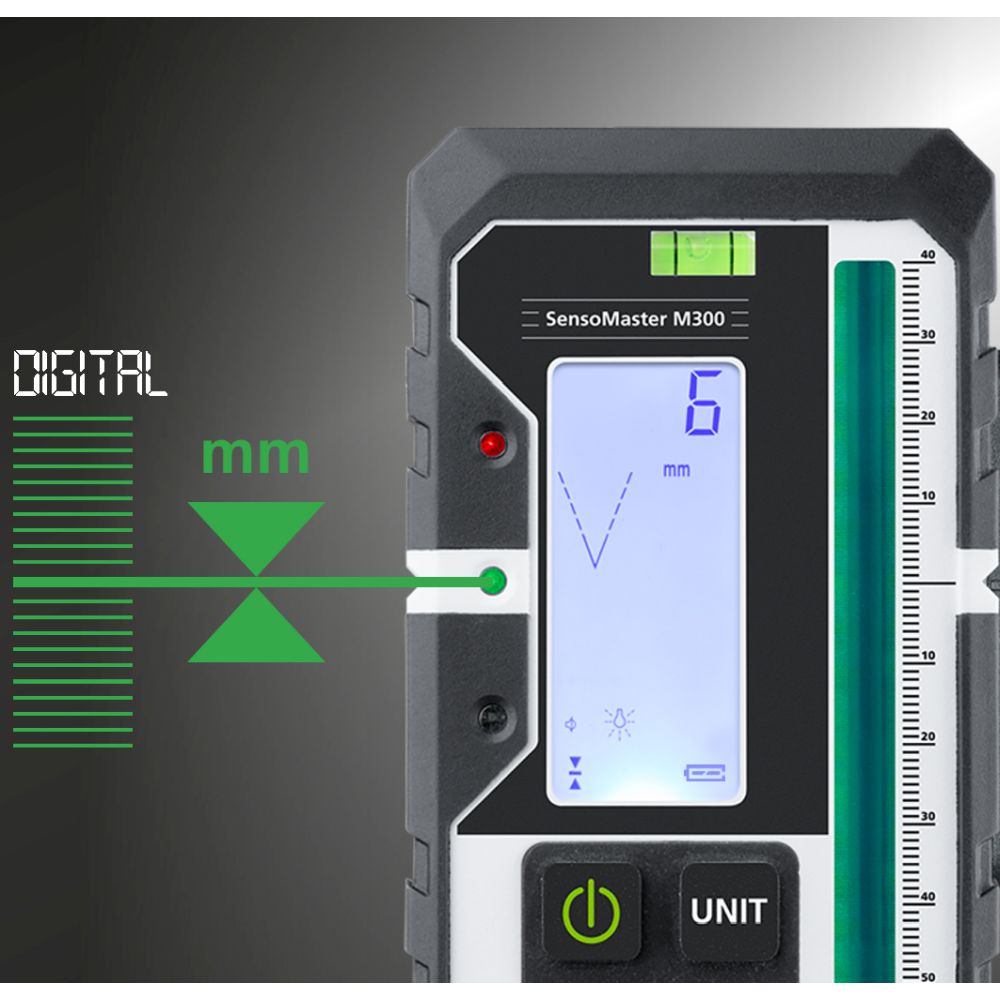

  • Millimetre display for quick and accurate reading of height differences with respect to the laser level
  • Easy-to-read LC displays on front and back

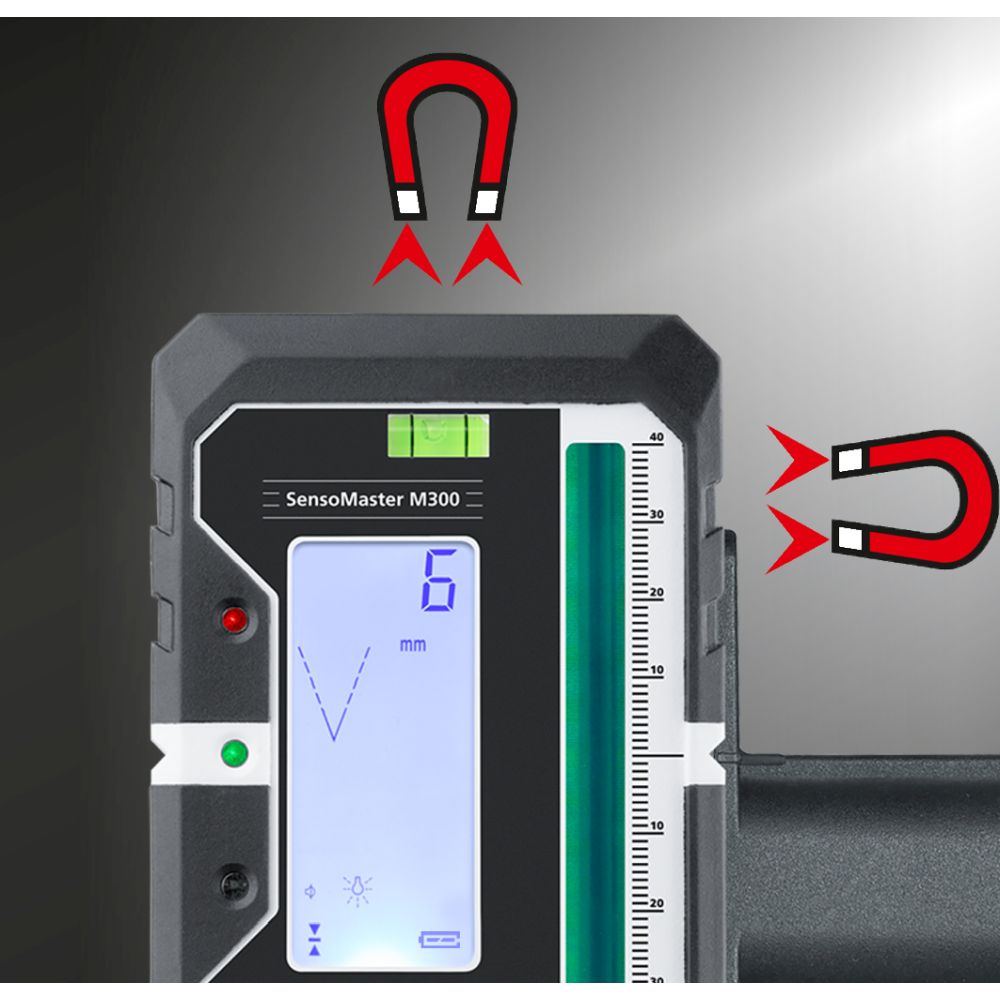

  • Head magnet allow quick attachment to metallic surfaces
  • Switchable, extremely loud Piezo buzzer sound
  • Easily fixed to measuring staff with universal holder
  • Vertical and horizontal vial
  • Robust waterproof housing
  • Protective rubber coating

  • Necessary Rotation Speed300 - 1100 rpm
    Laser Reception Rangemax. 300 m
    Length of Receiver Unit4 in
    Protection ClassIP 66
    Power Supply6 x 1.5V LR03 (AAA)
    Operating Timeapprox. 20 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-20°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)74 mm x 155 mm x 28 mm
    Weight310 g (ohne Zubehör)

    Scope of delivery:

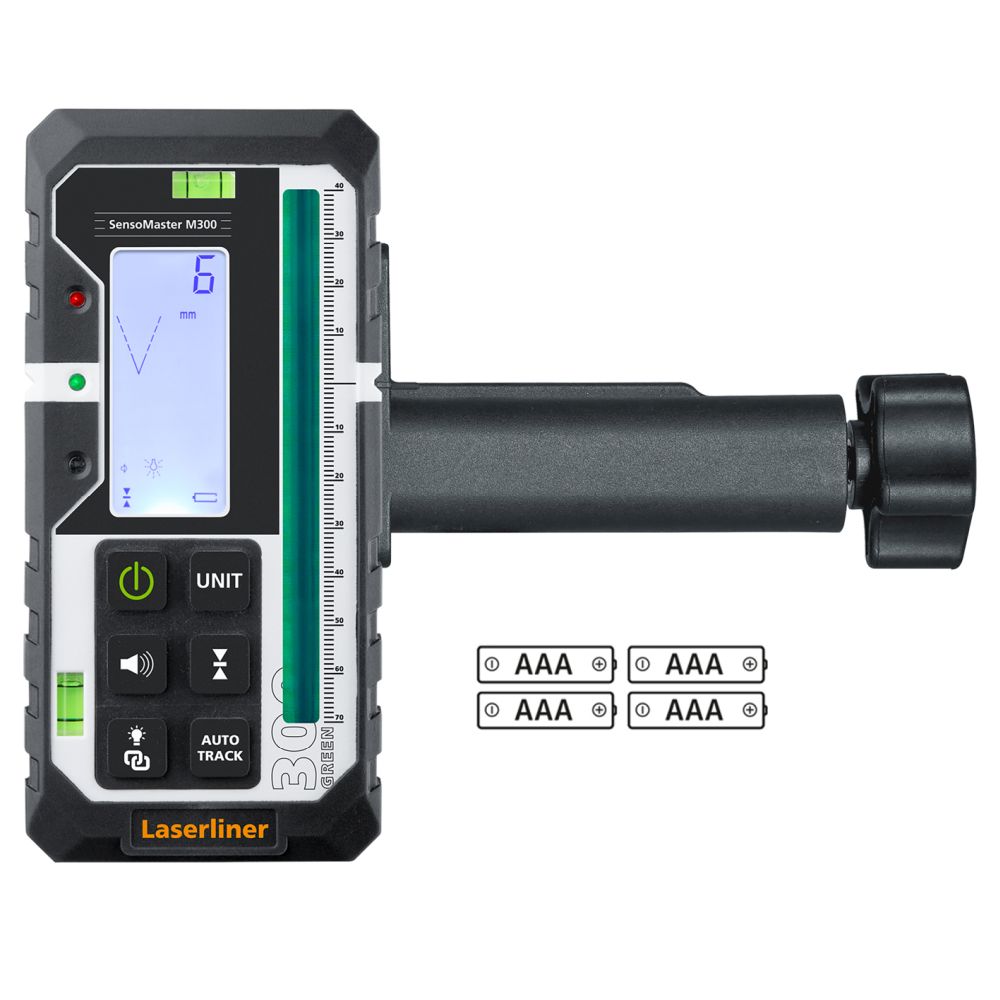

  • SensoMaster M300 S
  • universal mount
  • batteries


  • Documentation:

    Instructions


    Categorie:

    Titel:
    Laser receiver

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 028.77, GTIN (EAN): 4021563740451
