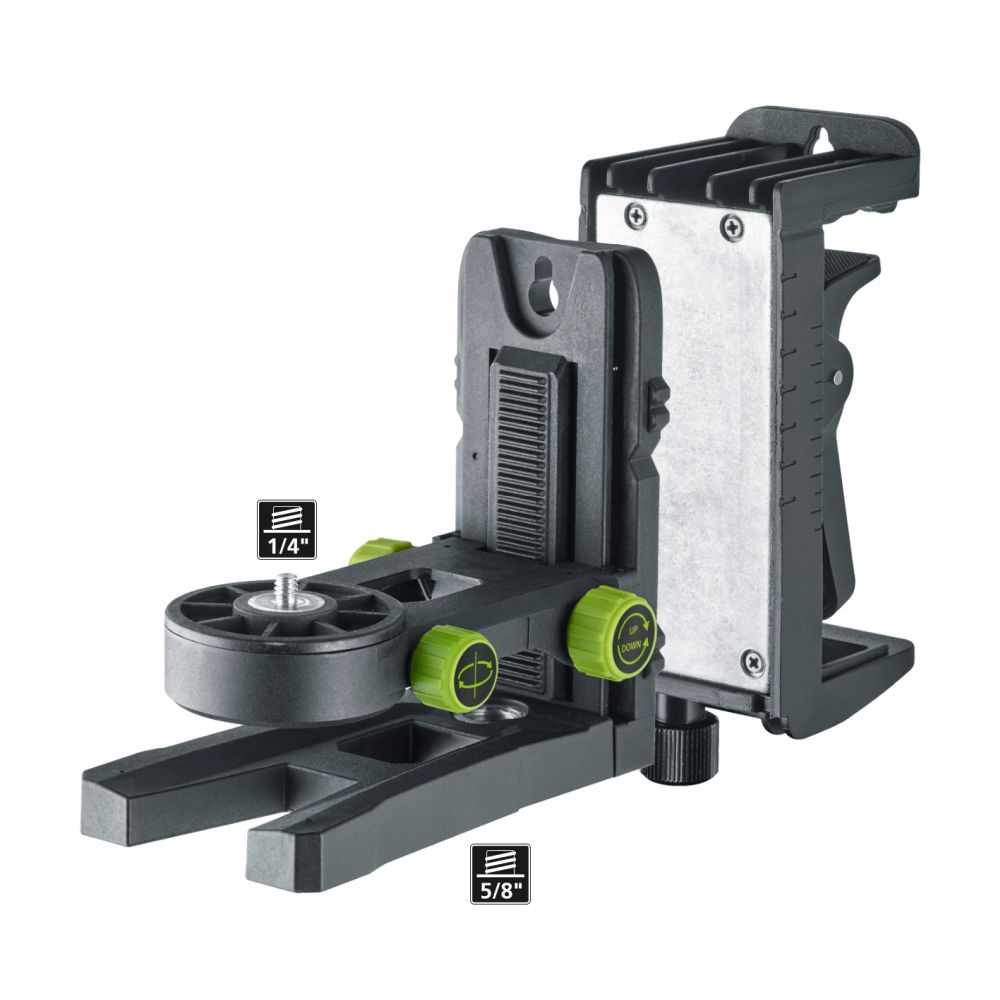

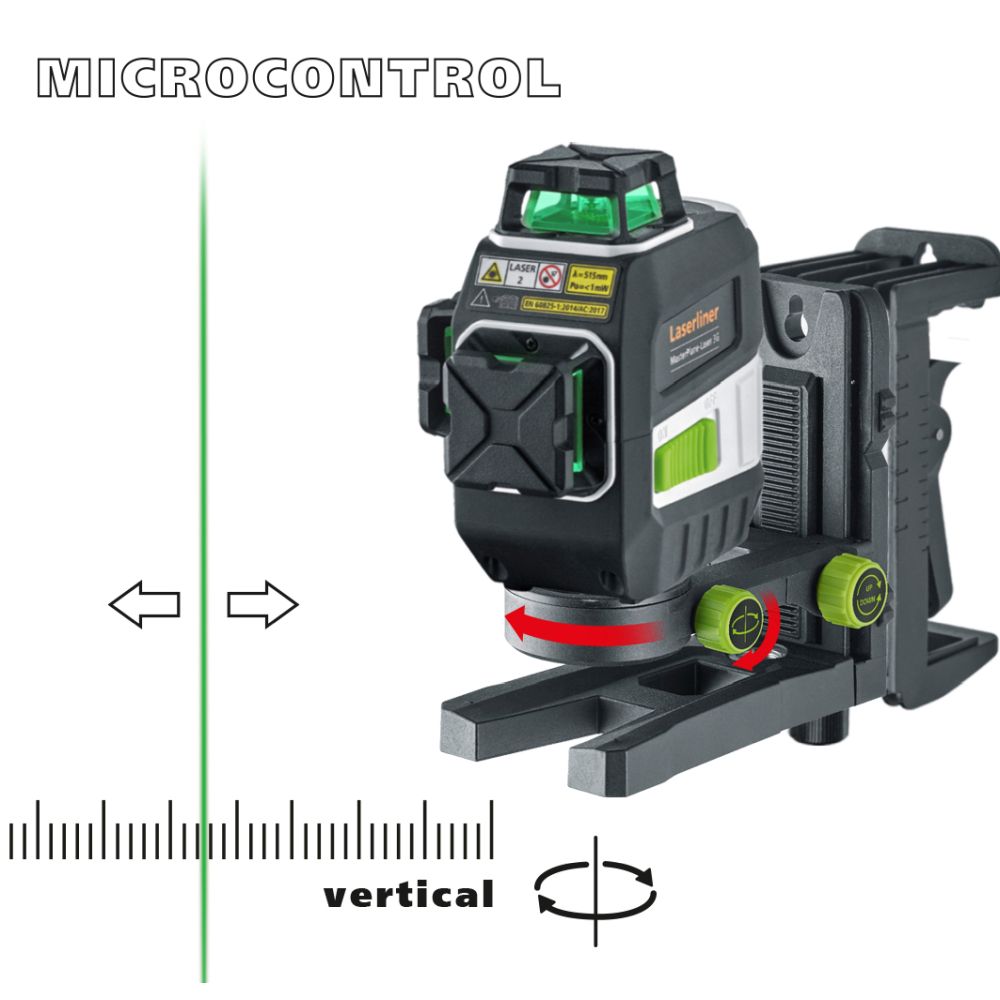

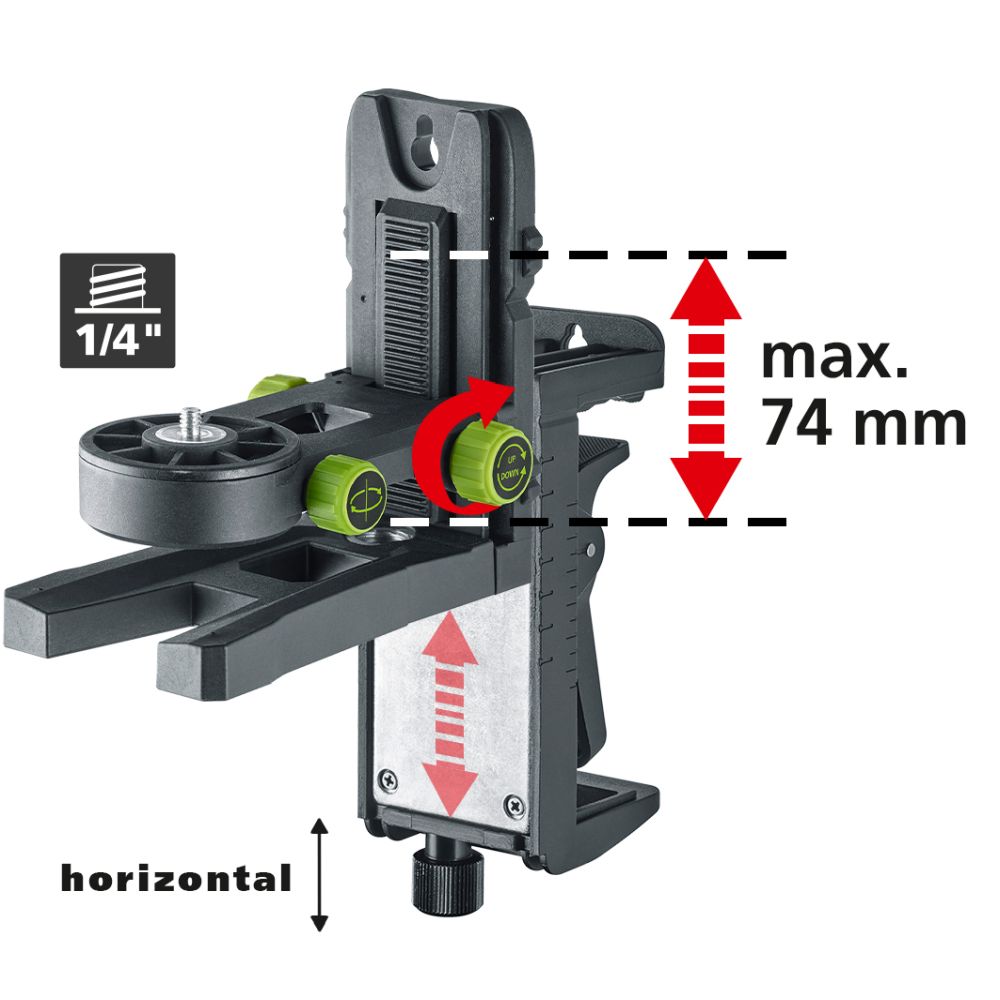

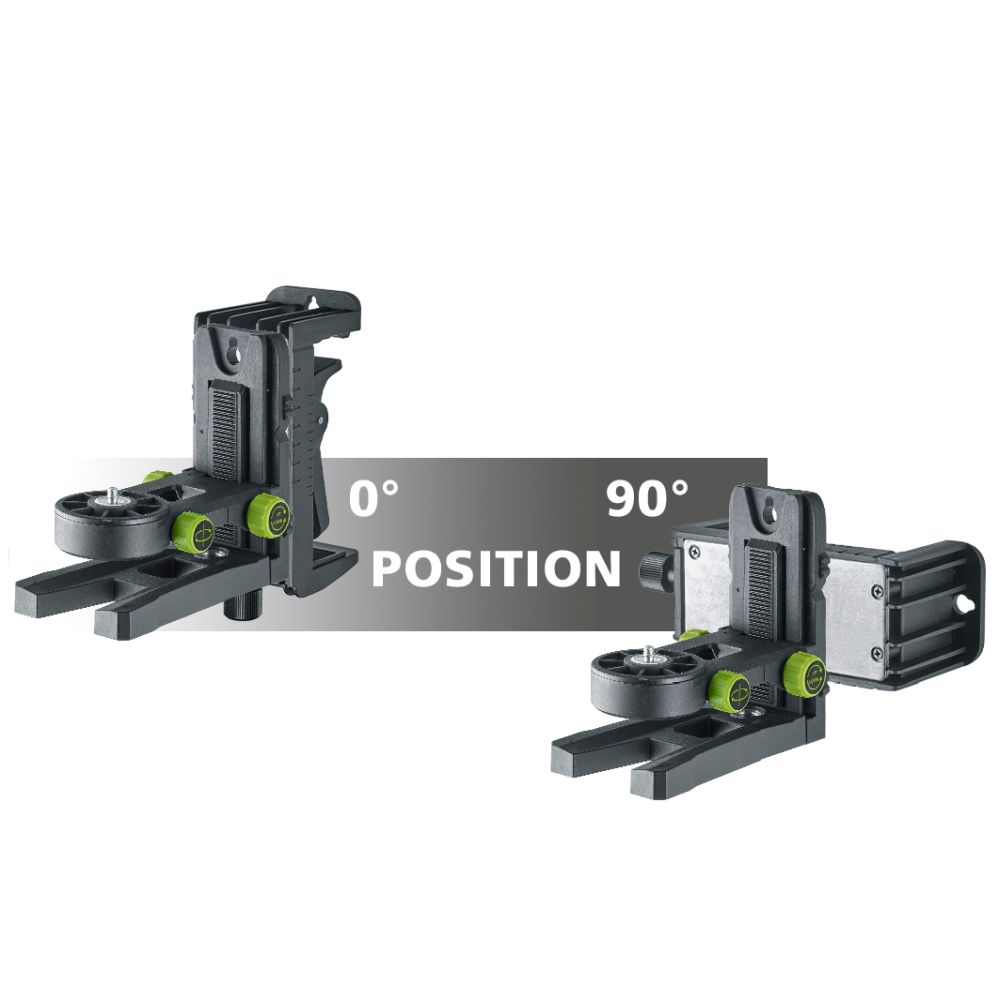

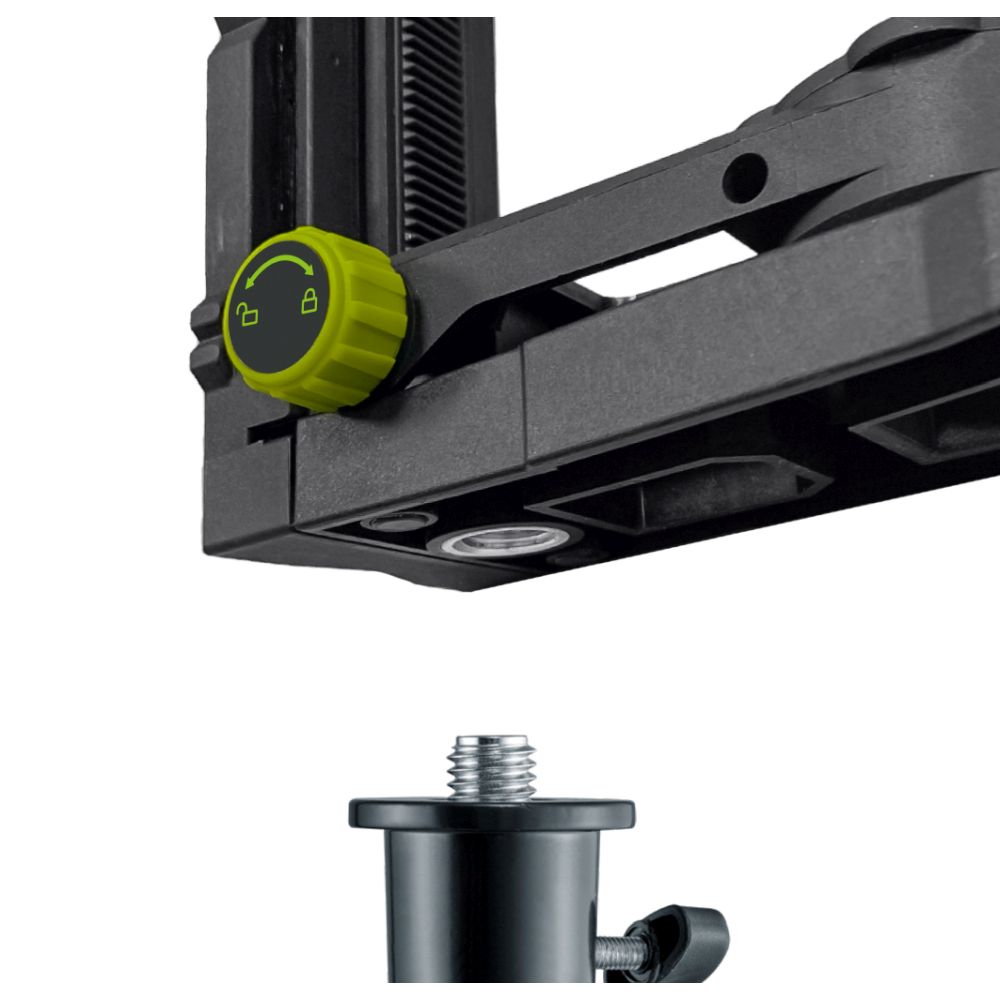

Description: All lasers with a 1/4” thread can be positioned with this clamp and wall bracket or securely attached to metallic surfaces or ceiling profiles. The bracket can be adapted to many different profile depths using the adjusting screw and provides precise height adjustment. Changing the position of the two magnetic retaining elements allows the device to be attached to horizontal and vertical objects, such as pipework. Extremely handy vernier adjustment mechanism to ensure the laser lines are precisely aligned with edges. The integral 5/8” thread is perfect for use with construction site tripods.
| Material | Polymer |
| Max. Load Capacity | 700 g |
| Tripod Connection | 5/8" thread |
| Operating Conditions | -10°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, # |
| Storage Conditions | -20°C … 70°C, Luftfeuchtigkeit max. 85% rH |
| Dimensions (W x H x D) | 220 mm x 175 mm x 94 mm |
| Weight | 741 g # |
Scope of delivery:
Documentation:
Product information sheetTitel:
Magnetic clamp and wall bracket
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 036.22, GTIN (EAN): 4021563726844
