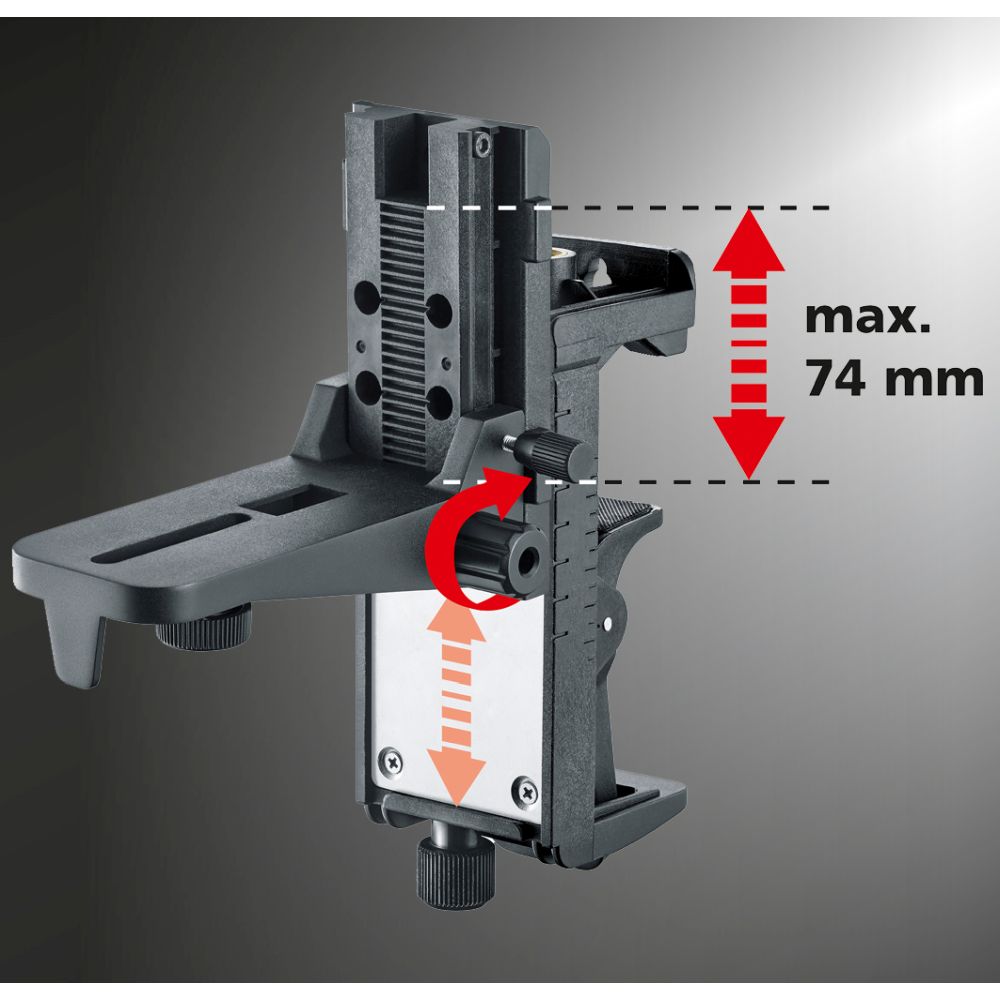

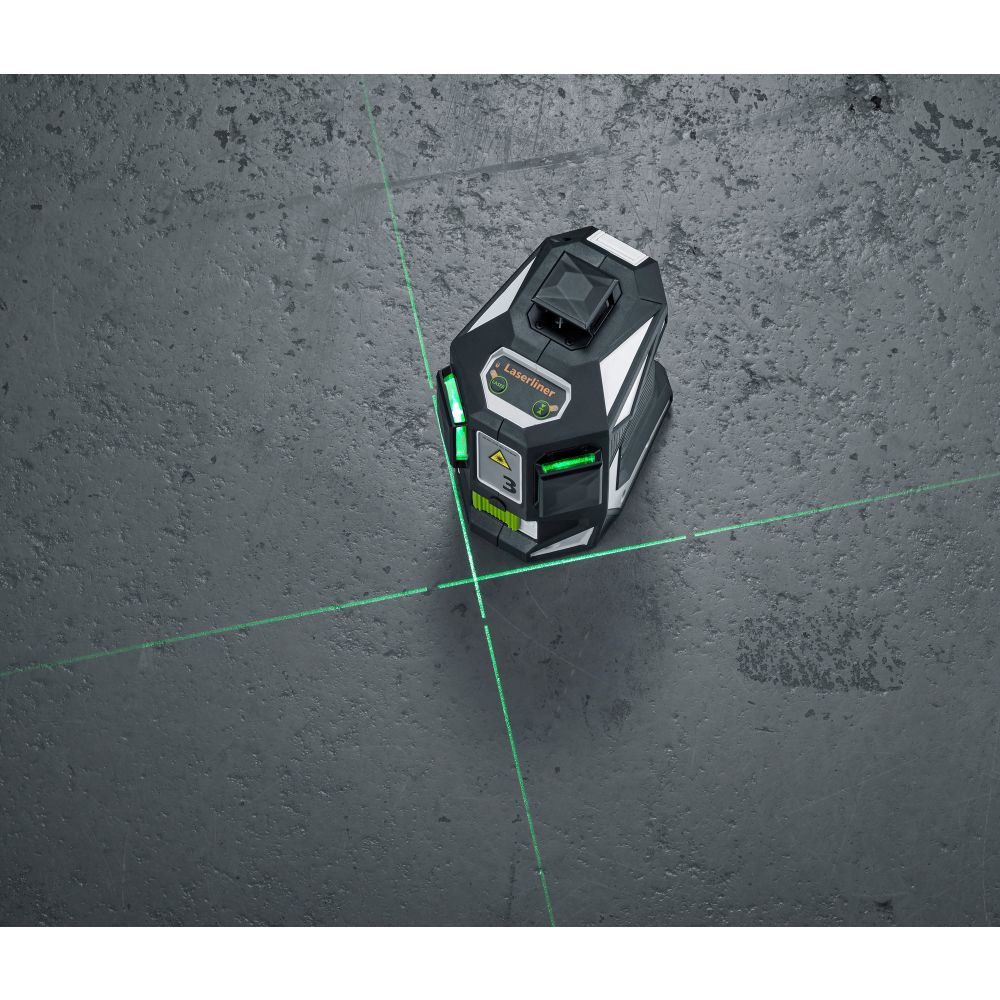

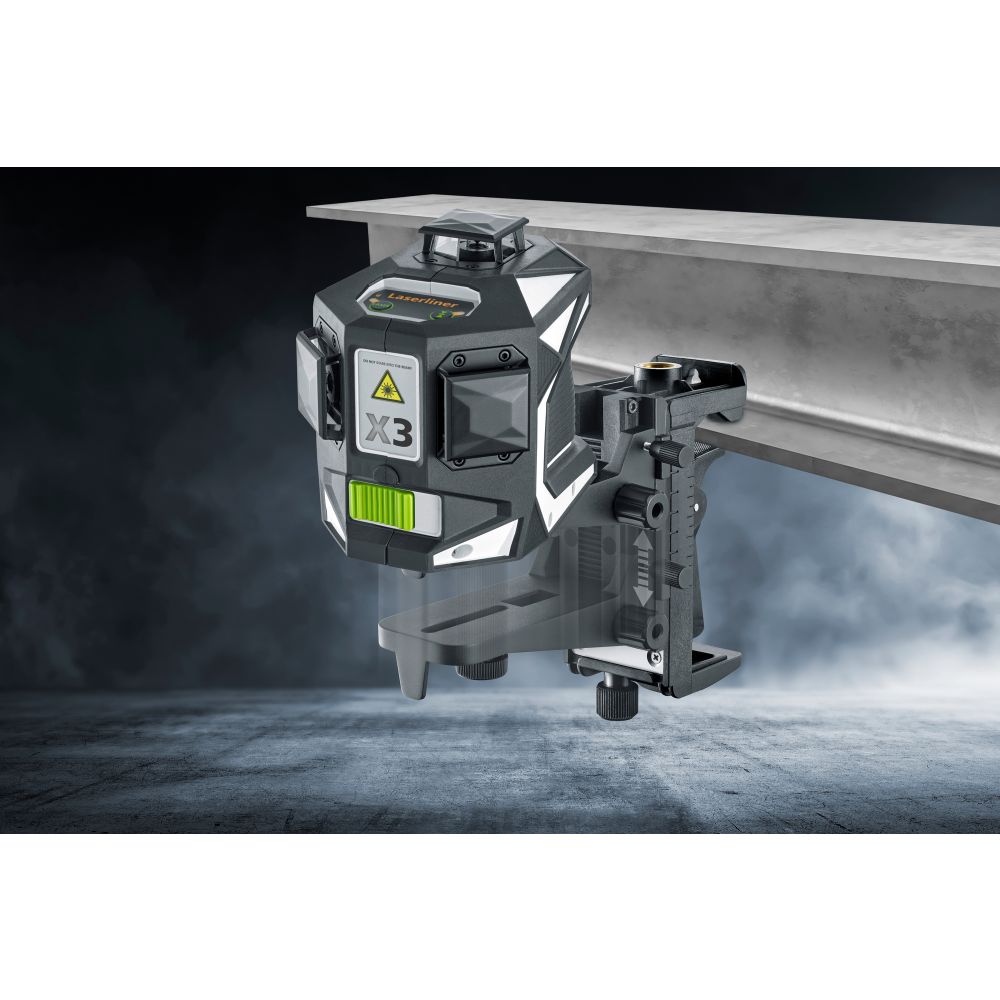

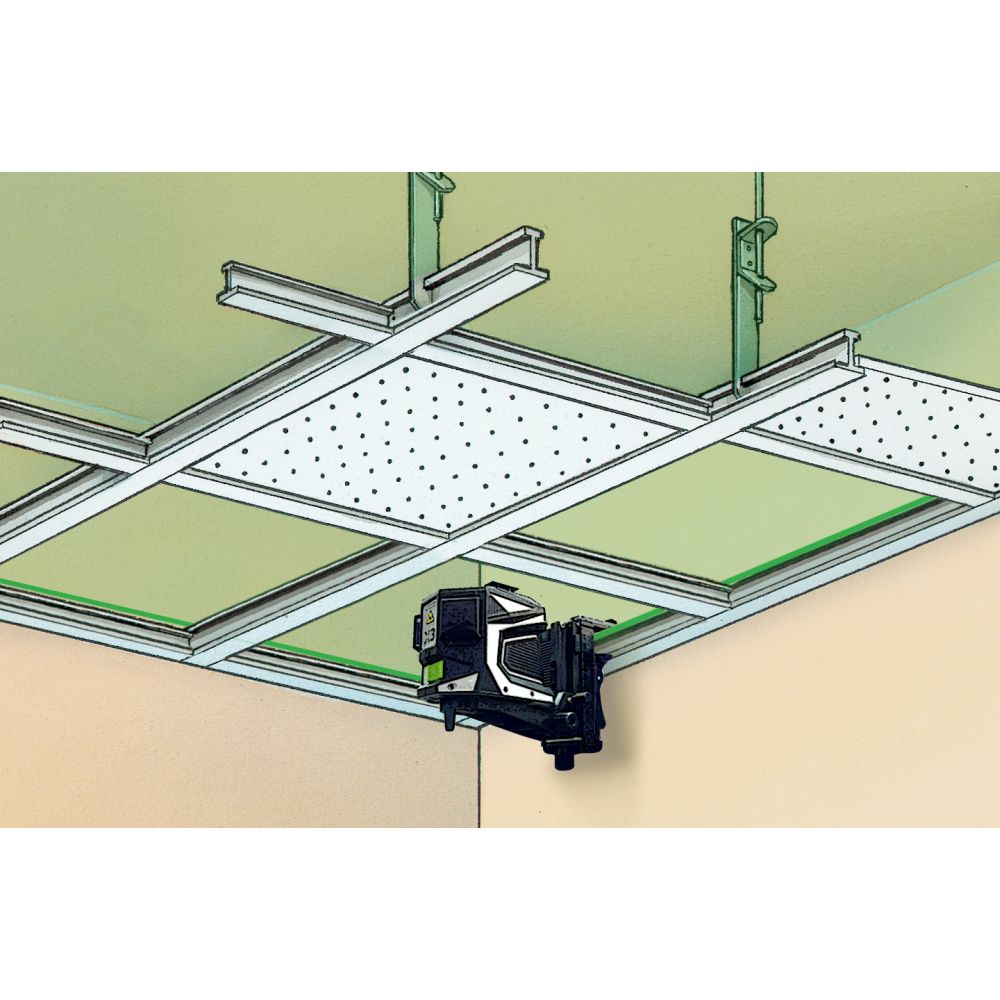

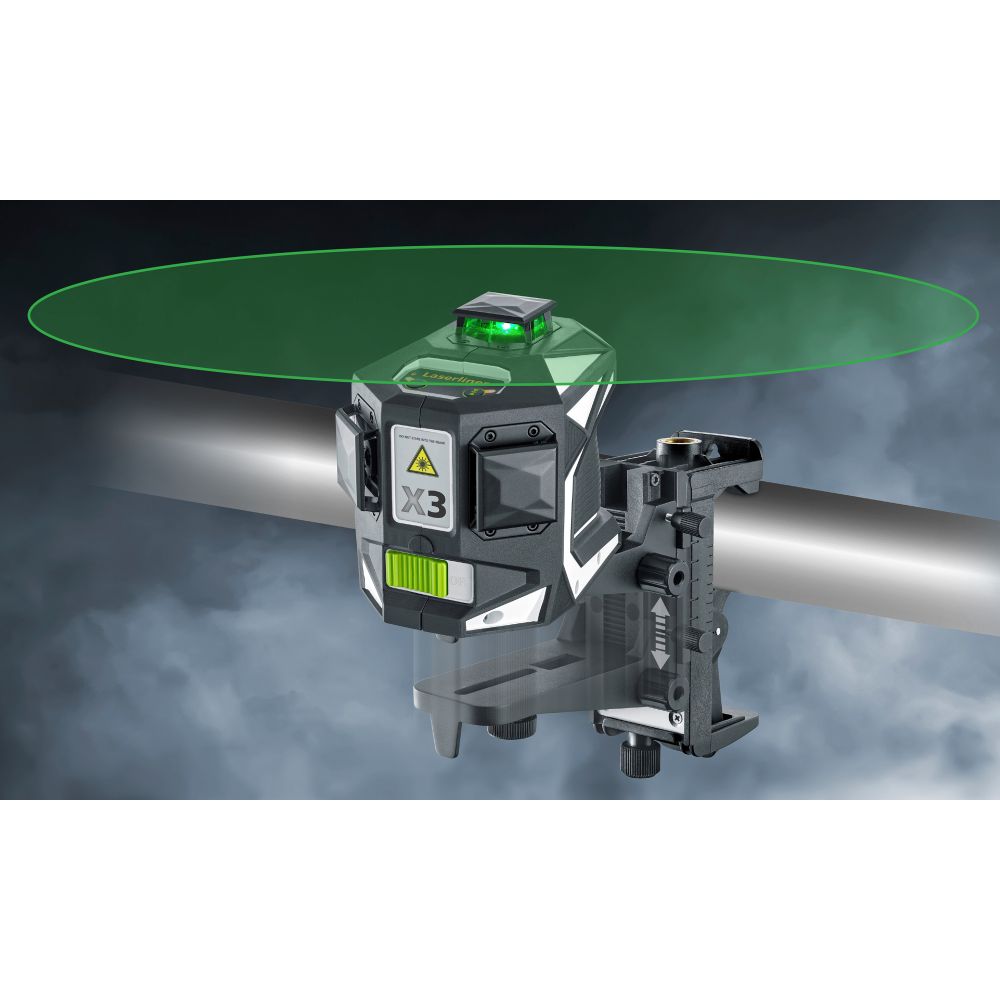

Description: The three-dimensional cross-line laser allows the exact horizontal and vertical alignment of objects. Green laser technology ensures high visibility of the laser lines. The measuring device is optimised for work close to the ceiling, can be mounted in a variety of ways and has a long operating time.
| Hand receiver mode | ✅ |
| Horizontal/vertical levelling | ✅ |

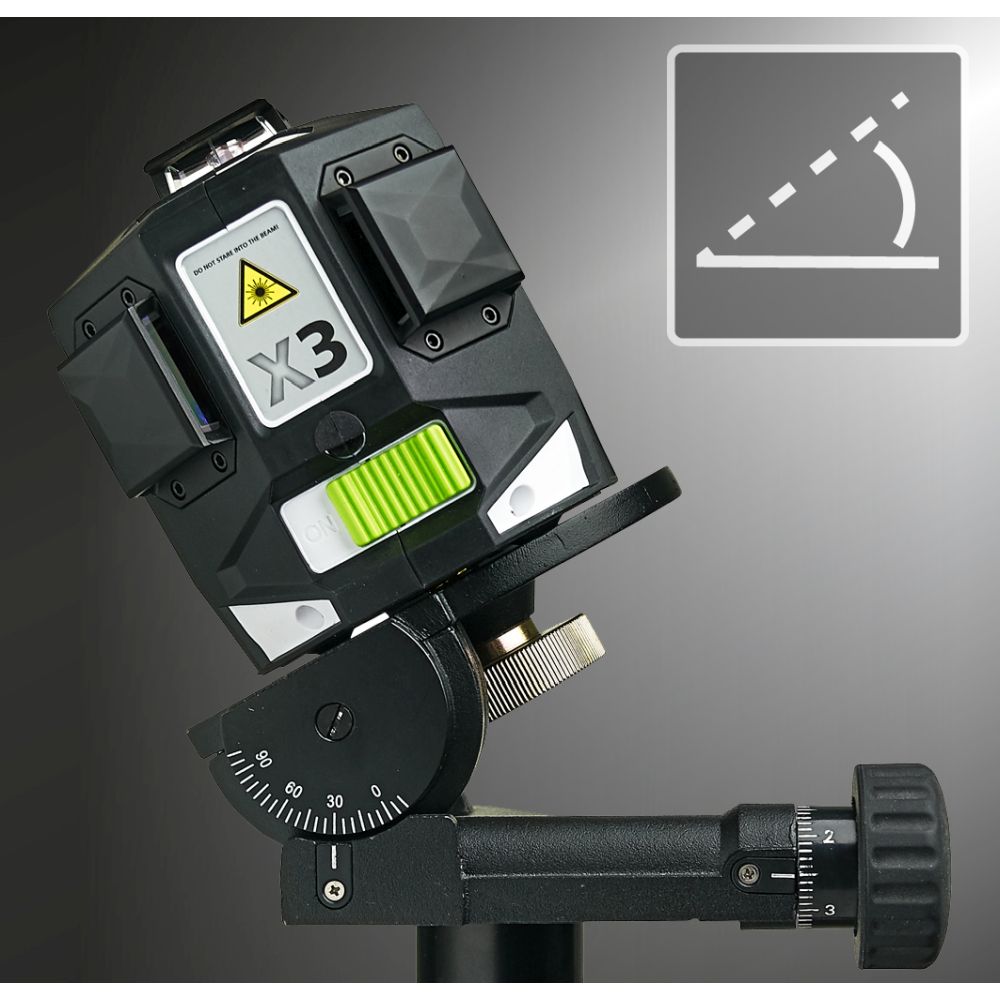

| Manual slope function | ✅ |

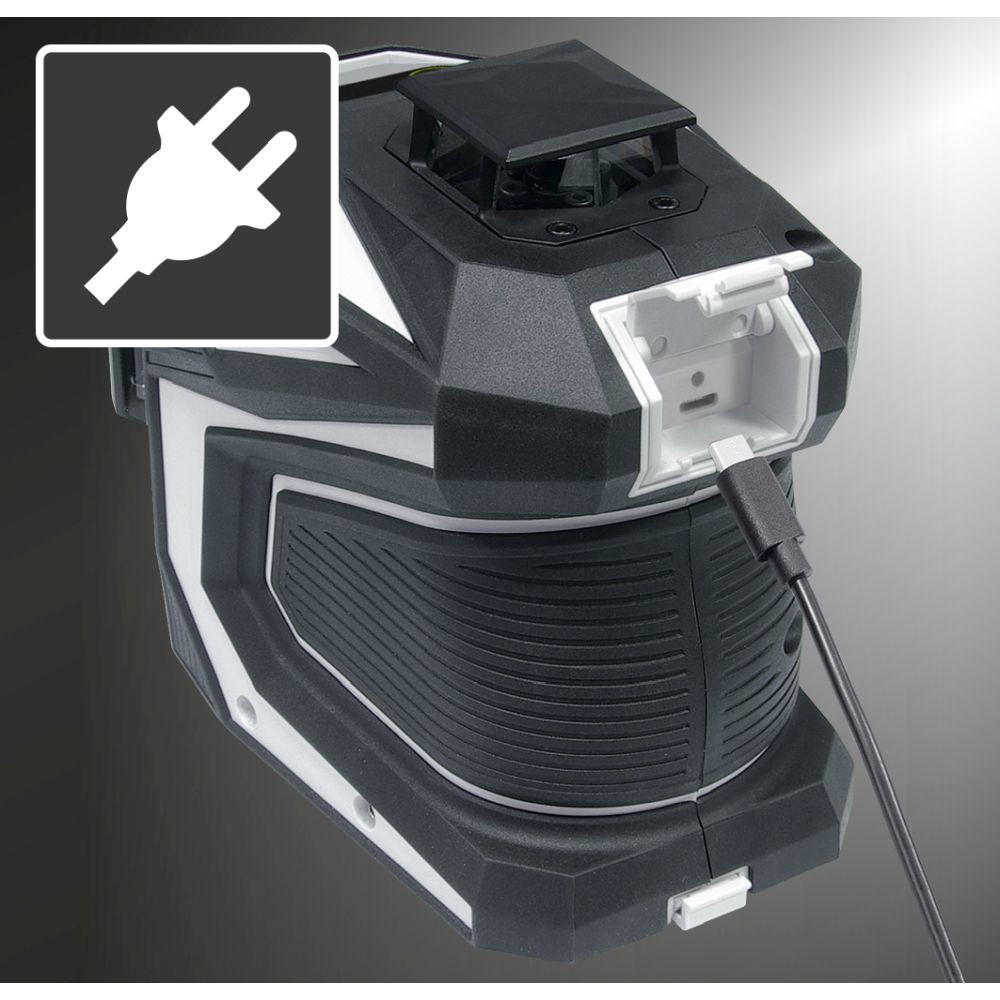

| Battery and mains operation | ✅ |

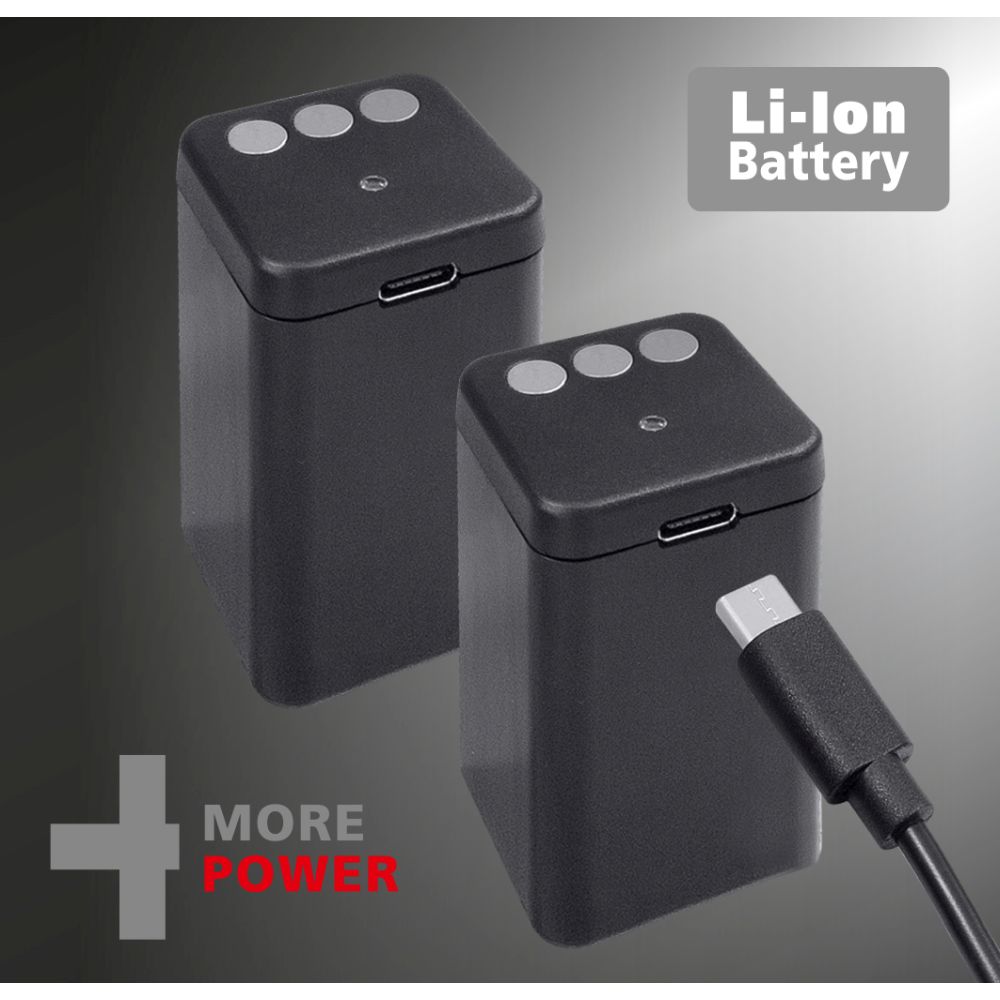

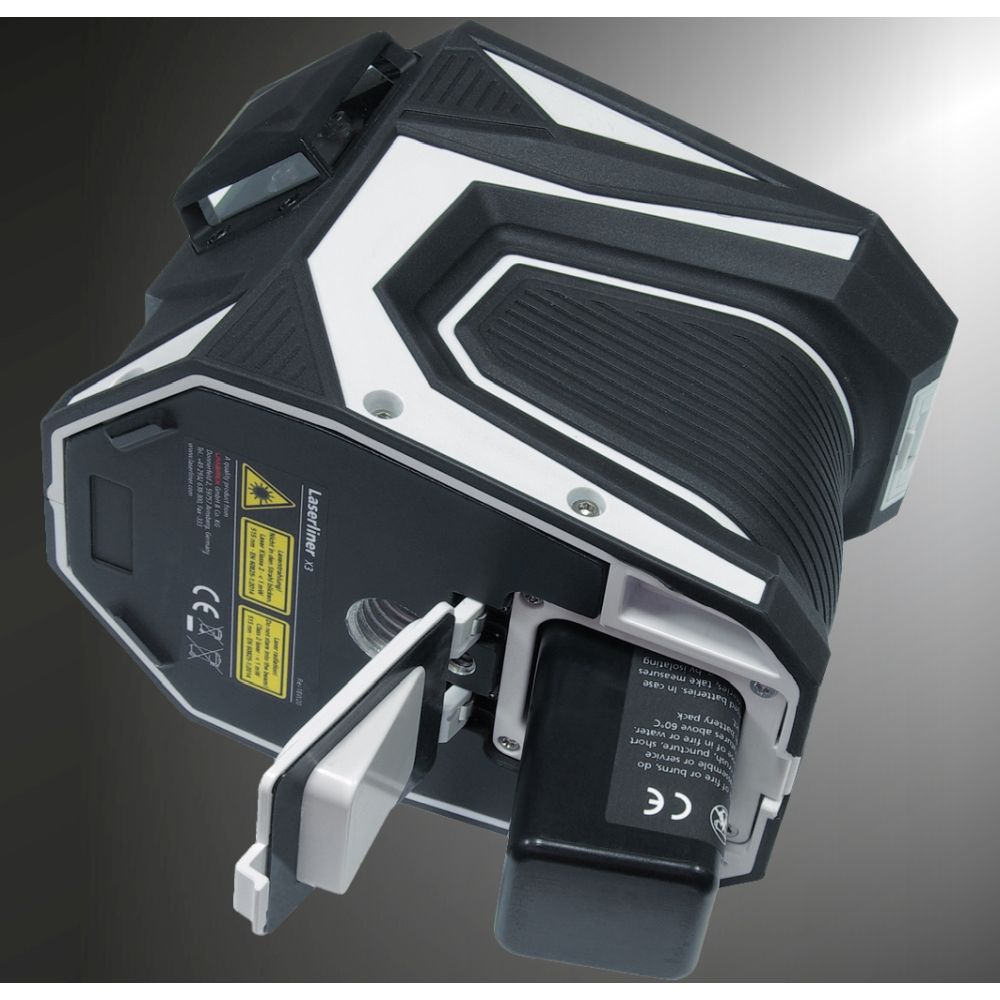

| Replaceable battery system | ✅ |
| Self-Levelling Range | ± 3° |
| Accuracy | ± 0.2 mm / m |
| Levelling | automatic |
| Visibility (Typical)* | vertical: 40 m / horizontal: 60 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Power Supply | Li-ion battery pack 3.7V / 4.5Ah / 16.65Wh Power adapter 5V / DC / 1A Power adapter 5V / DC / 2A |
| Operating Time | with 3 laser levels: approx. 3 hours with 2 laser levels: approx. 5.5 hours with 1 laser level: approx. 8 hours |
| Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
| Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
| Dimensions (W x H x D) | 140 mm x 125 mm x 103 mm |
| Weight | 925 g (inkl. Akkupack) |
| * at max. 300 lux |
Scope of delivery:
Accessories (optional):
 CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver CombiRangeXtender 40(Art.No.: 033.35A) - laser receiver
 RangeXtender M 50(Art.No.: 033.70A) - Laser receiver RangeXtender M 50(Art.No.: 033.70A) - Laser receiver
 RangeXtender G 60(Art.No.: 033.55A) - laser receiver RangeXtender G 60(Art.No.: 033.55A) - laser receiver
 VarioStand L 300 cm(Art.No.: 080.24A) - tripod VarioStand L 300 cm(Art.No.: 080.24A) - tripod
 Lightweight Tripod 165 cm(Art.No.: 080.02) - tripod Lightweight Tripod 165 cm(Art.No.: 080.02) - tripod
 Crank Tripod P 175 cm(Art.No.: 080.26) - crank tripod Crank Tripod P 175 cm(Art.No.: 080.26) - crank tripod
 Crank Tripod 260 cm(Art.No.: 080.35) - Crank tripod Crank Tripod 260 cm(Art.No.: 080.35) - Crank tripod
 Crank Tripod 300 cm(Art.No.: 080.39) - Crank tripod Crank Tripod 300 cm(Art.No.: 080.39) - Crank tripod
 LaserSight green(Art.No.: 020.71A) - Laser enhancement glasses LaserSight green(Art.No.: 020.71A) - Laser enhancement glasses
Documentation:
Titel:
 Three-dimensional laser

 Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
 BlackLine

 Art.No.: 036.800L, GTIN (EAN): 4021563705221
