ProLine

PowerCross-Laser 8G

cross-line laser

Item no.: 032.090L
EAN: 4021563718122

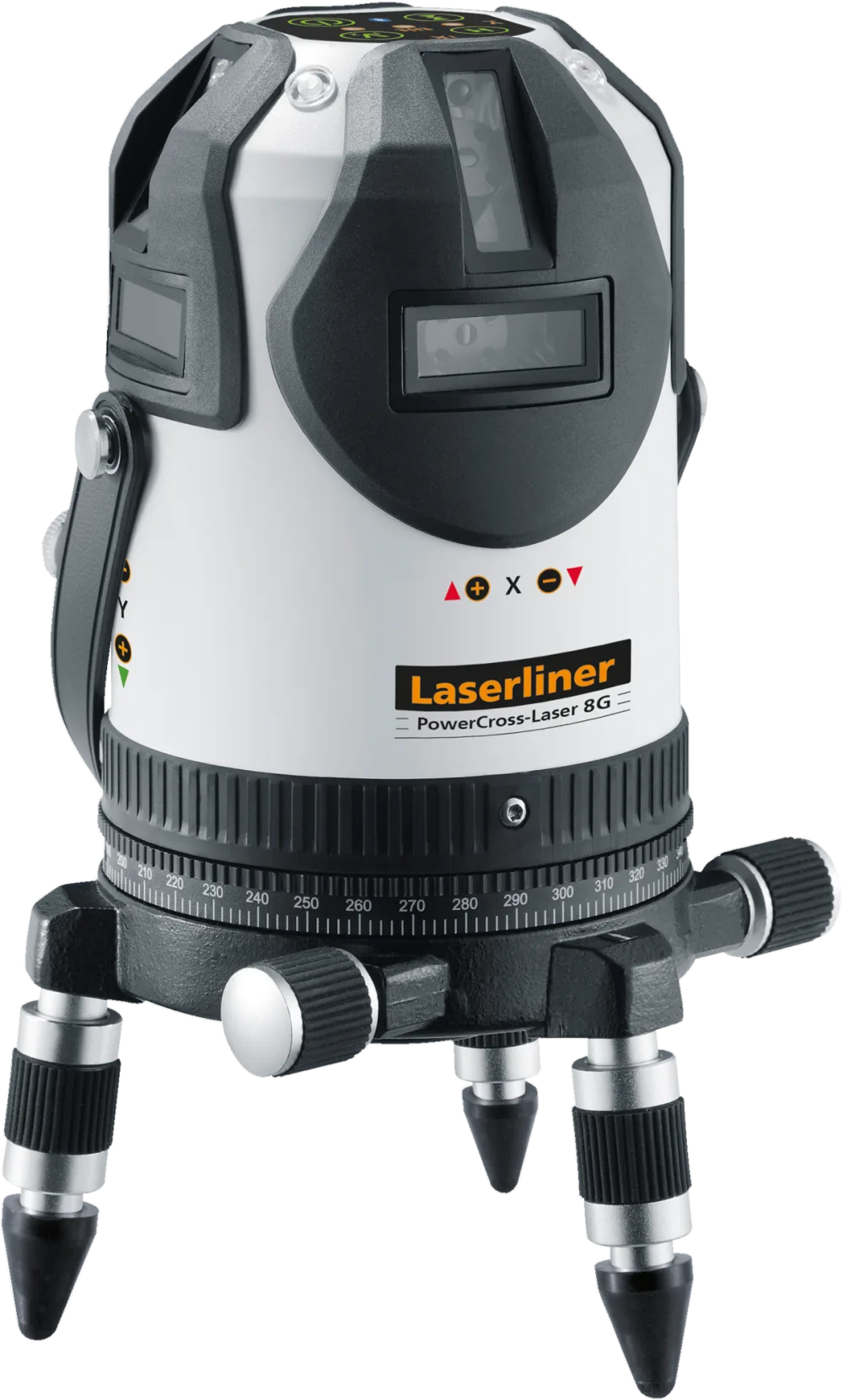

PowerCross-Laser 8G
🔍 Click to enlarge

Product video

Description

Precision cross-line laser with 8 laser lines and plumb function - extremely bright due to Powergreen + +

This cross-line laser projects eight extremely bright, green laser lines – perfect for horizontal and vertical alignment throughout the room. The rotatable housing with vernier adjustment mechanism and a horizontal circle allows the laser lines to be precisely positioned. The device features a motorised slope function for creating gradients. The combination of the upper laser cross and a lower plumb laser allows the floor and ceiling to be worked on at the same time. The AntiShake mode allows the device to be set up quickly on vibrating surfaces and when exposed to wind. The integral handheld receiver mode means the PowerCross laser 8G can be used with an optional laser receiver – perfect for working over large distances. Controlling the laser remotely via the Commander app is a particularly practical solution in inaccessible locations. Choose between battery or mains operation.

Highlights

  • Precise horizontal and vertical alignment throughout the room
  • The pivoted housing with a vernier adjustment mechanism and horizontal circle permits exact positioning of laser lines
  • Ultra bright laser cross with green laser technology
  • Easy alignment of slopes
  • Plumb function for synchronous working on floor and ceiling
  • Digital Connection interface for remote control with smartphones using the Commander app
  • AntiShake provides quick setup on vibrating surfaces and when exposed to wind
  • Integrated handheld receiver mode for outdoor applications and long ranges

Technical data

Horizontal/vertical levelling✅
Precision sensor levelling✅
Motorised slope function ✅
Plumb laser down✅
Rotatable housing with vernier adjustment mechanism✅
Anti-shake mode✅
Hand receiver mode✅
Battery and mains operation✅
Replaceable battery system✅
Self-Levelling Range± 3°
Accuracy±0.1 mm/m
Levellingautomatic horizontal / vertical levelling with electronic levels and motors
Visibility (Typical)*60 m
Laser Wavelength515 nm
Laser Class2 / < 1 mW
Power SupplyPower adapter 5V / DC / 1A
Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh
Operating Timeapprox. 4 hours
Operating Conditions0°C … 50°C, max. humidity 85% rH, no condensation, max. working altitude 2000 m above sea level
Storage Conditions-10°C … 70°C, max. humidity 85% rH
Dimensions (W x H x D)130 mm x 225 mm x 130 mm
Weight1506 g (incl. battery pack)

Scope of delivery

  • PowerCross-Laser 8G
  • laser enhancement glasses
  • network/charging device incl. international adapter
  • remote control
  • tripod adapter for crank tripods
  • rubber caps
  • Li-ion battery
  • complete in the L-BOXX 238
